WCMT 431-FM:T9325
WCMT 431-FM:T9325

WCMT 431-FM:T9325

UGC DOR6754444
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.04 CAD - $23.04 CAD
$23.04 CAD
$23.04 CAD - $23.04 CAD
$23.04 CAD

Vendu en lots de : 10

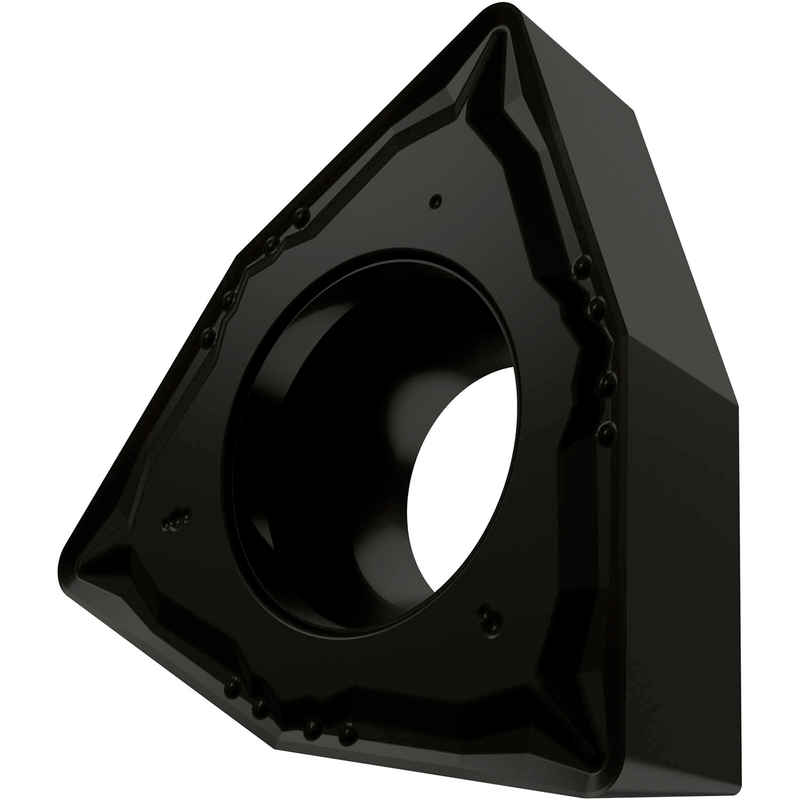

Plaquette de tournage positive simple face, trigonale à 80° avec un dépouille de 7°, diamètre du cercle inscrit de 12,7 mm (1/2"), épaisseur de 4,76 mm (3/16"), rayon de pointe de 0,4 mm (1/64") et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage fin à moyen des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)WCMT 431-FM:T9325
Product Name (ISO)WCMT 080404E-FM:T9325
GradeT9325
Chipbreaker (CBMD)FM
Product Number6754444
Product FamilyCMTM
Insert Geometry
Insert DesignWCMT
Insert Shape Code (SC)W - trigon
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6754444
EAN3603602898104
File Type Download
WCMT 431-FM:T9325 — Line Drawing PDF Download
