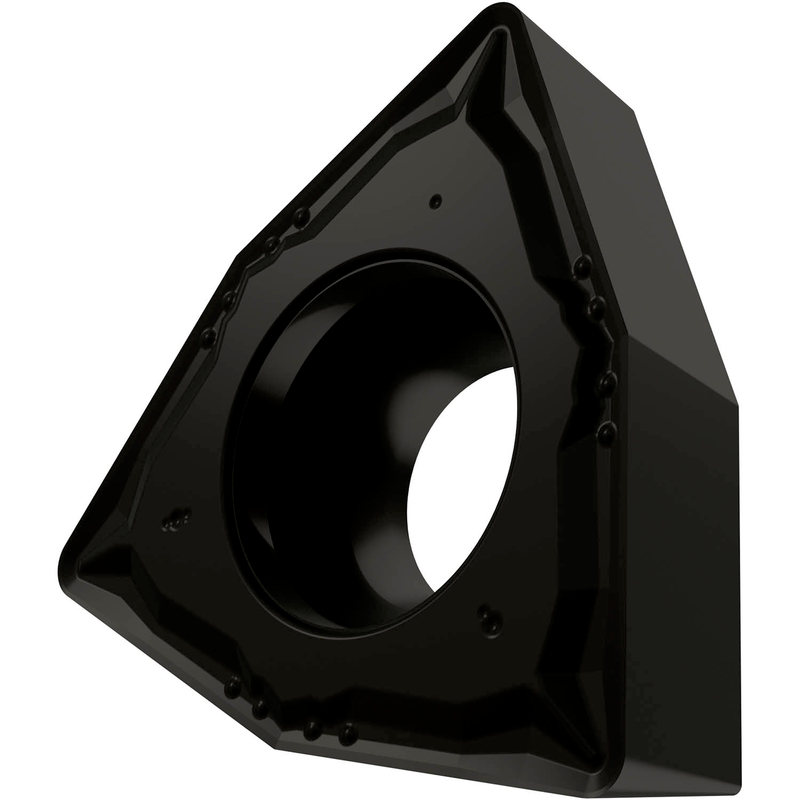

WCMT 433-FM:T9325
WCMT 433-FM:T9325

WCMT 433-FM:T9325

UGC DOR6754446
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.04 CAD - $23.04 CAD
$23.04 CAD
$23.04 CAD - $23.04 CAD
$23.04 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, trigon 80° avec dépouille 7°, diamètre du cercle inscrit de 1/2", épaisseur 3/16", rayon de bec 3/64" et précision d'indexation selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage fin à moyen des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)WCMT 433-FM:T9325
Product Name (ISO)WCMT 080412E-FM:T9325
GradeT9325
Chipbreaker (CBMD)FM
Product Number6754446
Product FamilyCMTC
Insert Geometry
Insert DesignCMTO
Insert Shape Code (SC)W - trigonale
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6754446
EAN3603602898128
File Type Download
WCMT 433-FM:T9325 — Line Drawing PDF Download
