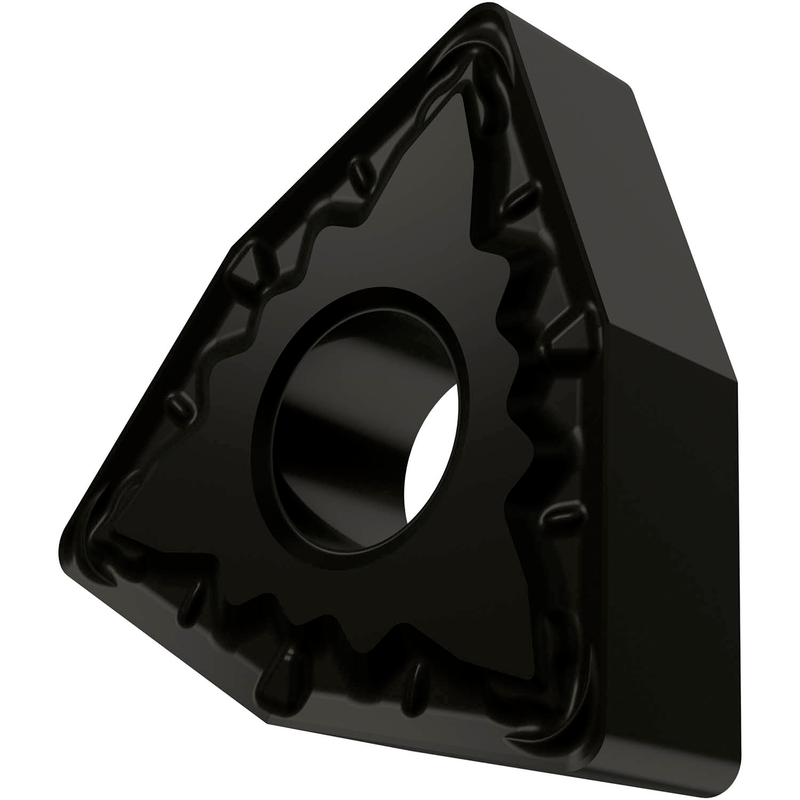

WNMG 332-FM:T9325
WNMG 332-FM:T9325

WNMG 332-FM:T9325

UGC DOR6754453
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.40 CAD - $11.40 CAD
$11.40 CAD
$11.40 CAD - $11.40 CAD
$11.40 CAD

Vendu en lots de : 10

Plaquette négative double face, trigon 80° avec un diamètre de cercle inscrit de 3/8", 3/16" d'épaisseur, rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15 - P35, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 332-FM:T9325
Product Name (ISO)WNMG 060408E-FM:T9325
GradeT9325
Chipbreaker (CBMD)FM
Product Number6754453
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6754453
EAN3603602898197
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
WNMG 332-FM:T9325 — Line Drawing PDF Download
