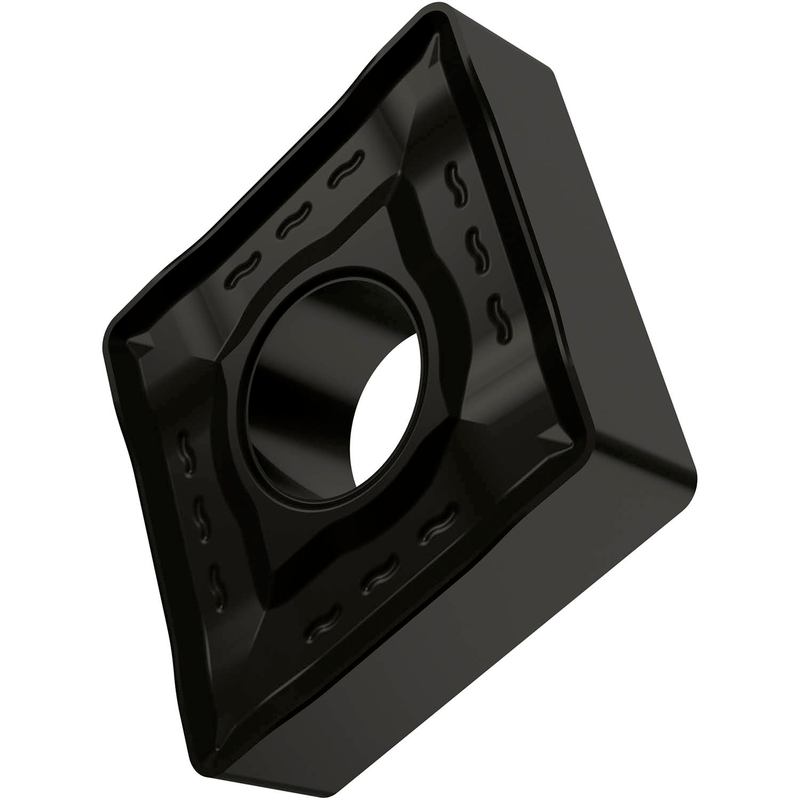

CNMM 866-NR2:T9325
CNMM 866-NR2:T9325

CNMM 866-NR2:T9325

UGC DOR6754485
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.93 CAD - $61.93 CAD
$61.93 CAD
$61.93 CAD - $61.93 CAD
$61.93 CAD

Vendu en lots de : 5

Plaquette négative double-face, rhomboïde 80° avec diamètre de cercle inscrit de 1", 3/8" d'épaisseur, rayon de bec de 3/32" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux NR2, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15 - P35 et M10 - M30, pour l'usinage moyen à très lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 866-NR2:T9325
Product Name (ISO)CNMM 250924E-NR2:T9325
GradeT9325
Chipbreaker (CBMD)NR2
Product Number6754485
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.63"
Depth of Cut Max — mm (APMX)16.0 mm
Tool Information
Reference Numbers
EDP Number6754485
EAN3603602898517
File Type Download
CNMM 866-NR2:T9325 — Line Drawing PDF Download
