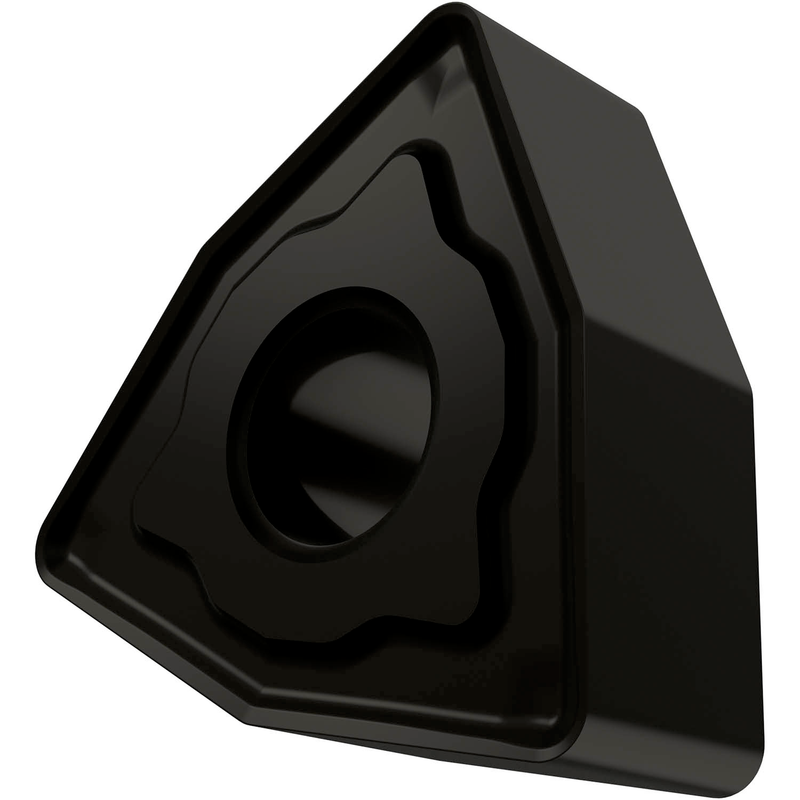

WNMG 433-NM:T9325
WNMG 433-NM:T9325

WNMG 433-NM:T9325

UGC DOR6754489
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.83 CAD - $13.83 CAD
$13.83 CAD
$13.83 CAD - $13.83 CAD
$13.83 CAD

Vendu en lots de : 10

Plaquette négative double face, trigon 80° avec un diamètre du cercle inscrit de 12,7 mm (1/2"), épaisseur 4,76 mm (3/16"), rayon de pointe 1,19 mm (3/64") et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux NM, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans les plages ISO P15-P35 et M10-M30, pour l'usinage des aciers et des aciers inoxydables, de la finition à l'ébauche

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 433-NM:T9325
Product Name (ISO)WNMG 080412E-NM:T9325
GradeT9325
Chipbreaker (CBMD)NM
Product Number6754489
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - gâchette
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number6754489
EAN3603602898555
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Utilisation possible
