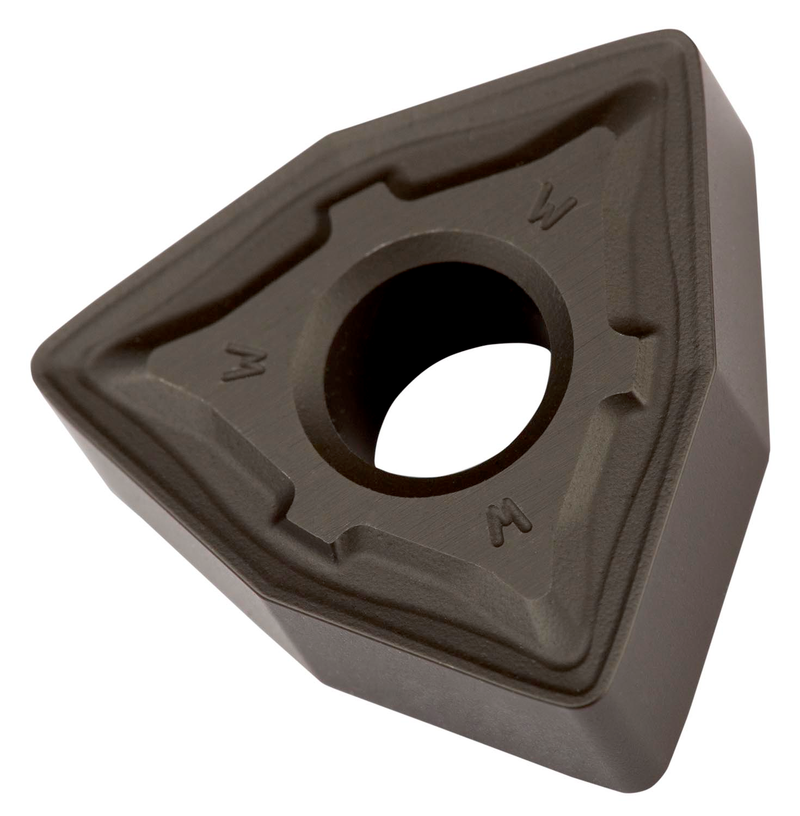

WNMG 433W-M:T9325
WNMG 433W-M:T9325

WNMG 433W-M:T9325

UGC DOR6754492
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.43 CAD - $15.43 CAD
$15.43 CAD
$15.43 CAD - $15.43 CAD
$15.43 CAD

Vendu en lots de : 10

Plaquette négative double face, trigon de 80° avec diamètre de cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 3/64", précision de positionnement selon la classe de tolérance ISO M, brise-copeaux M avec arête racleuse (WIPER), en nuance T9325, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD, dans la plage ISO P15-P35, pour l'usinage du dégrossissage à la finition des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 433W-M:T9325
Product Name (ISO)WNMG 080412W-M:T9325
GradeT9325
Chipbreaker (CBMD)L-M
Product Number6754492
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6754492
EAN3603602898586
File Type Download
WNMG 433W-M:T9325 — Line Drawing PDF Download
