WNMM 433-NR2:T9325
WNMM 433-NR2:T9325

WNMM 433-NR2:T9325

UGC DOR6754497
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.83 CAD - $13.83 CAD
$13.83 CAD
$13.83 CAD - $13.83 CAD
$13.83 CAD

Vendu en lots de : 10

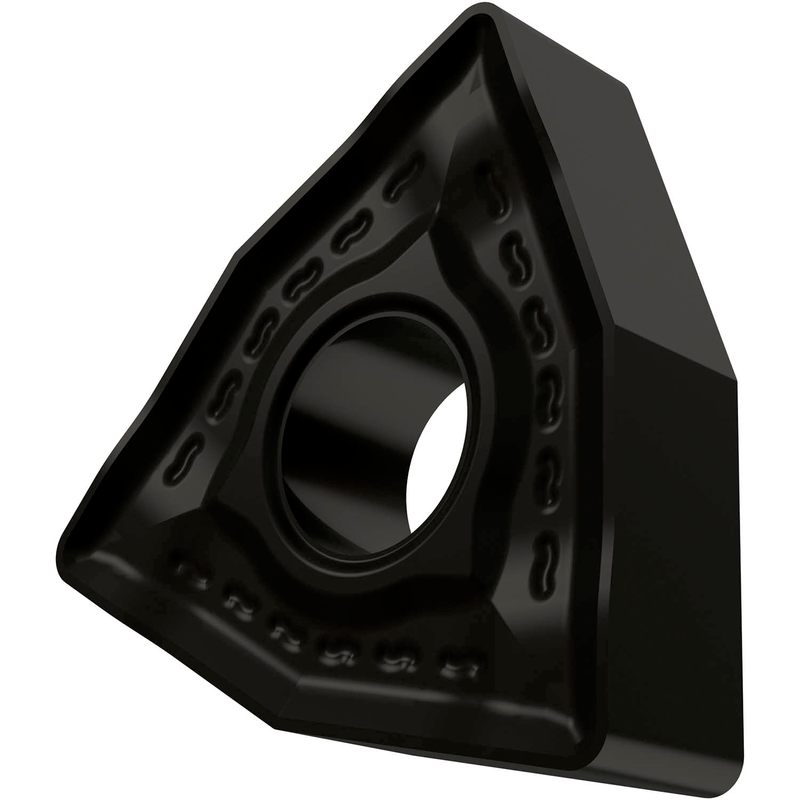

Plaquette négative double face, trigon de 80° avec un diamètre de cercle inscrit de 1/2", une épaisseur de 3/16", un rayon de bec de 3/64" et une précision d'indexation selon la classe de tolérance ISO M, brise-copeaux NR2, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15 - P35 et M10 - M30, pour l'usinage moyen à très lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMM 433-NR2:T9325
Product Name (ISO)WNMM 080412E-NR2:T9325
GradeT9325
Chipbreaker (CBMD)NR2
Product Number6754497
Product FamilyMNOE

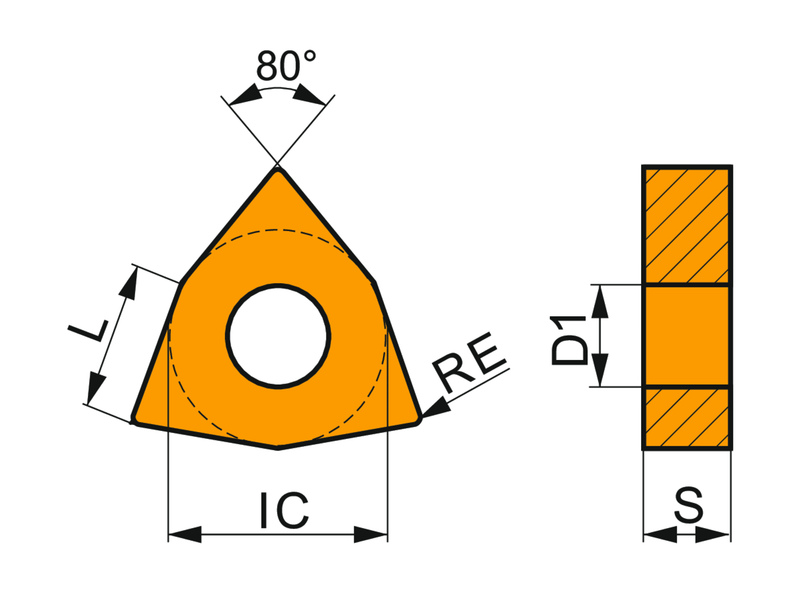

Insert Geometry
Insert DesignSMNM
Insert Shape Code (SC)W - trigon
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6754497
EAN3603602898630
File Type Download
WNMM 433-NR2:T9325 — Line Drawing PDF Download
