WNMM 434-OR:T9325
WNMM 434-OR:T9325

WNMM 434-OR:T9325

UGC DOR6754499
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.83 CAD - $13.83 CAD
$13.83 CAD
$13.83 CAD - $13.83 CAD
$13.83 CAD

Vendu en lots de : 10

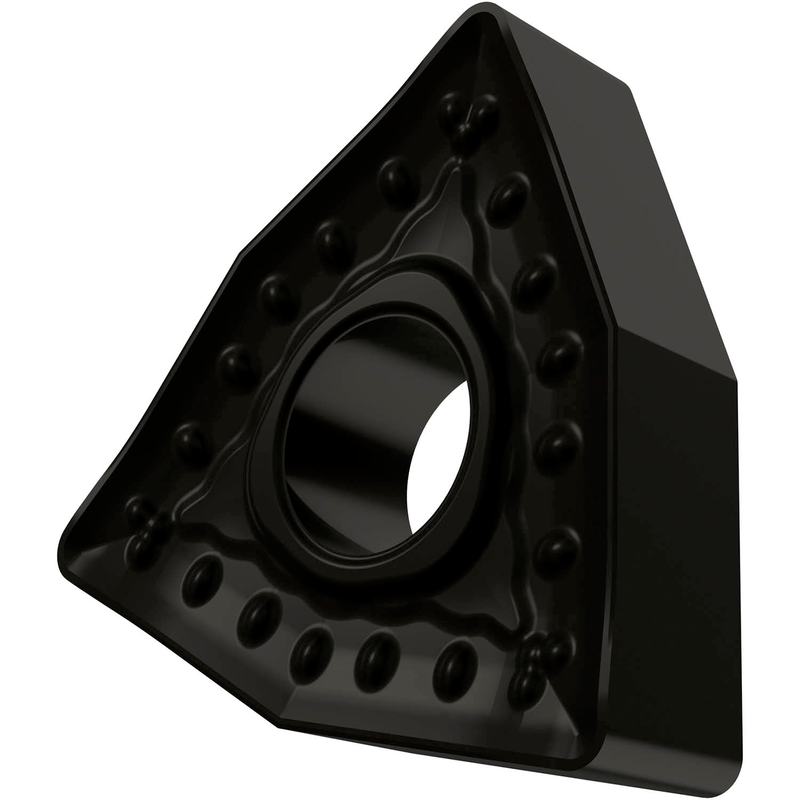

Plaquette négative double face, trigon 80° avec diamètre de cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/16" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux OR, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P15 - P35, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMM 434-OU:T9325
Product Name (ISO)WNMM 080416E-OR:T9325
GradeT9325
Chipbreaker (CBMD)OU_
Product Number6754499
Product FamilyWNMM

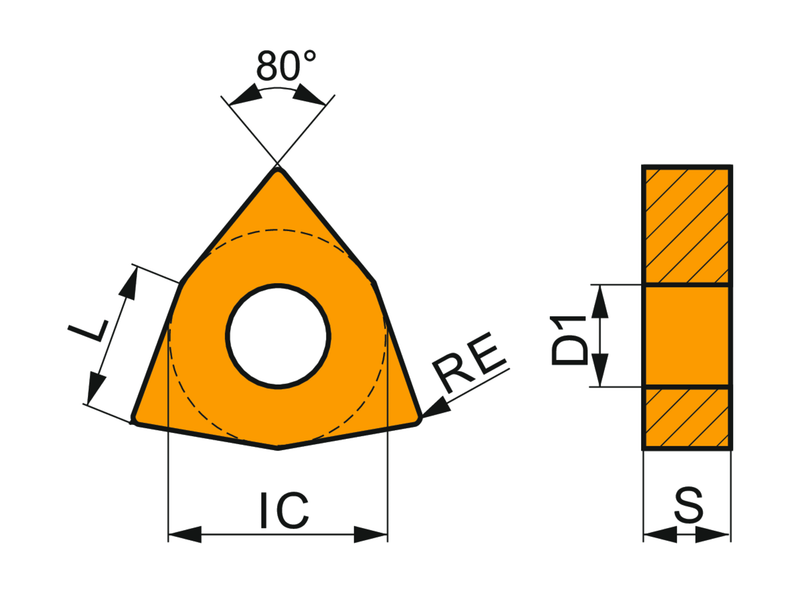

Insert Geometry
Insert DesignSMNM
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.22"
Depth of Cut Max — mm (APMX)5.6 mm
Tool Information
Reference Numbers
EDP Number6754499
EAN3603602898654
File Type Download
WNMM 434-OR:T9325 — Line Drawing PDF Download
