WNMM 644-OR:T9325
WNMM 644-OR:T9325

WNMM 644-OR:T9325

UGC DOR6754501
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.47 CAD - $22.47 CAD
$22.47 CAD
$22.47 CAD - $22.47 CAD
$22.47 CAD

Vendu en lots de : 10

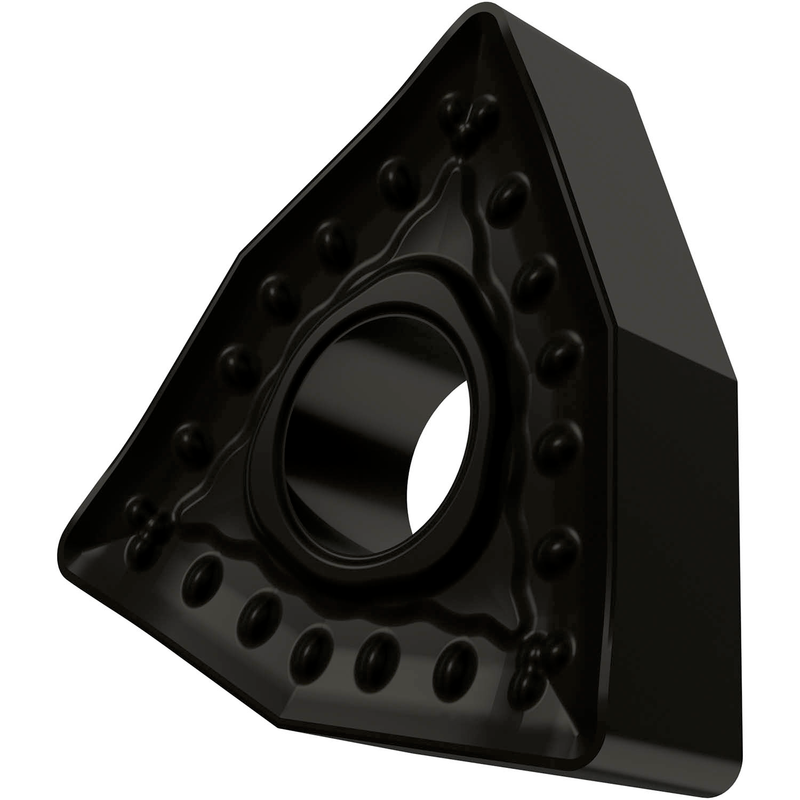

Plaquette négative double face, trigon de 80° avec un diamètre de cercle inscrit de 3/4", une épaisseur de 1/4", un rayon de bec de 1/16" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux OR, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15 - P35, pour l'usinage moyen à extra lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMM 644-OR:T9325
Product Name (ISO)WNMM 130616E-OR:T9325
GradeT9325
Chipbreaker (CBMD)OU_
Product Number6754501
Product FamilyWNMM

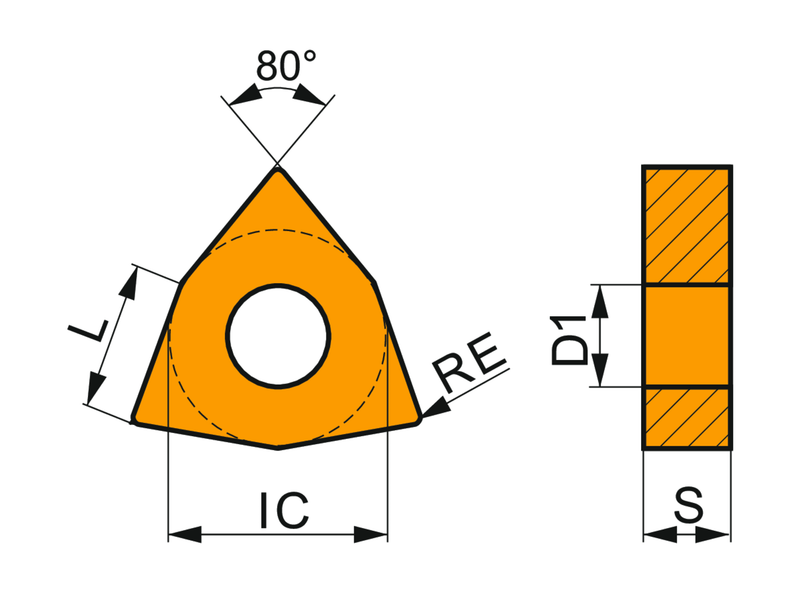

Insert Geometry
Insert DesignNMNO
Insert Shape Code (SC)W - trigonométrique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number6754501
EAN3603602898678
File Type Download
WNMM 644-OR:T9325 — Line Drawing PDF Download
