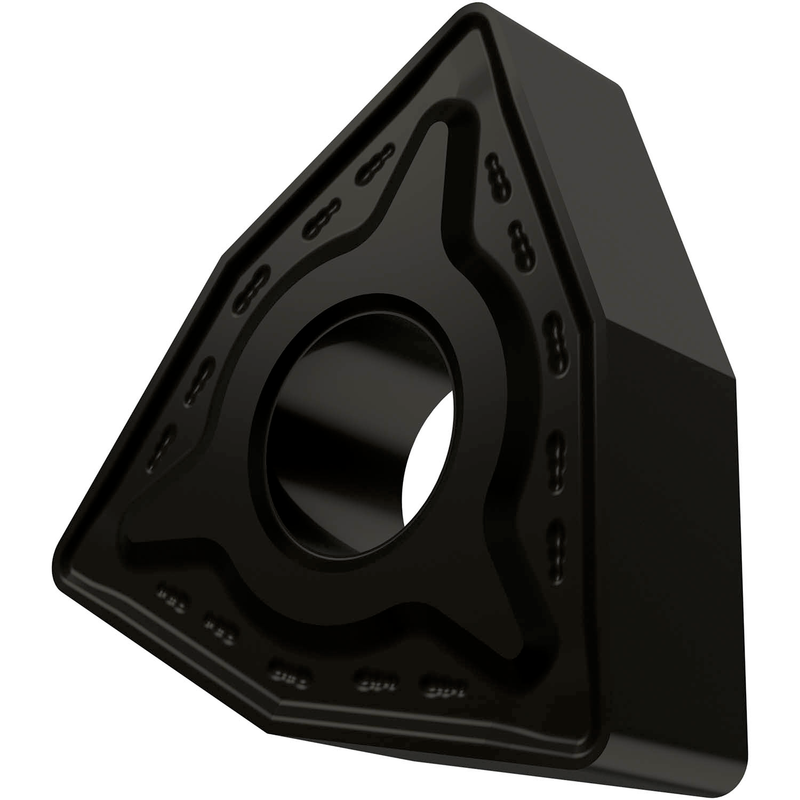

WNMG 333-RM:T9315
WNMG 333-RM:T9315

WNMG 333-RM:T9315

UGC DOR6754514
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.40 CAD - $11.40 CAD
$11.40 CAD
$11.40 CAD - $11.40 CAD
$11.40 CAD

Vendu en lots de : 10

Plaquette négative double face, trigon de 80° avec diamètre de cercle inscrit de 3/8", épaisseur de 3/16", rayon de bec de 3/64" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RM, en nuance T9315, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05-P25, pour l'usinage moyen à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 333-RM:T9315
Product Name (ISO)WNMG 060412E-RM:T9315
GradeT9315
Chipbreaker (CBMD)RM
Product Number6754514
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6754514
EAN3603602898807
File Type Download
WNMG 333-RM:T9315 — Line Drawing PDF Download
