ADKT 1505PDER-M:M9325
ADKT 1505PDER-M:M9325

ADKT 1505PDER-M:M9325

UGC DOR6754542
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.01 CAD - $17.01 CAD
$17.01 CAD
$17.01 CAD - $17.01 CAD
$17.01 CAD

Vendu en lots de : 10

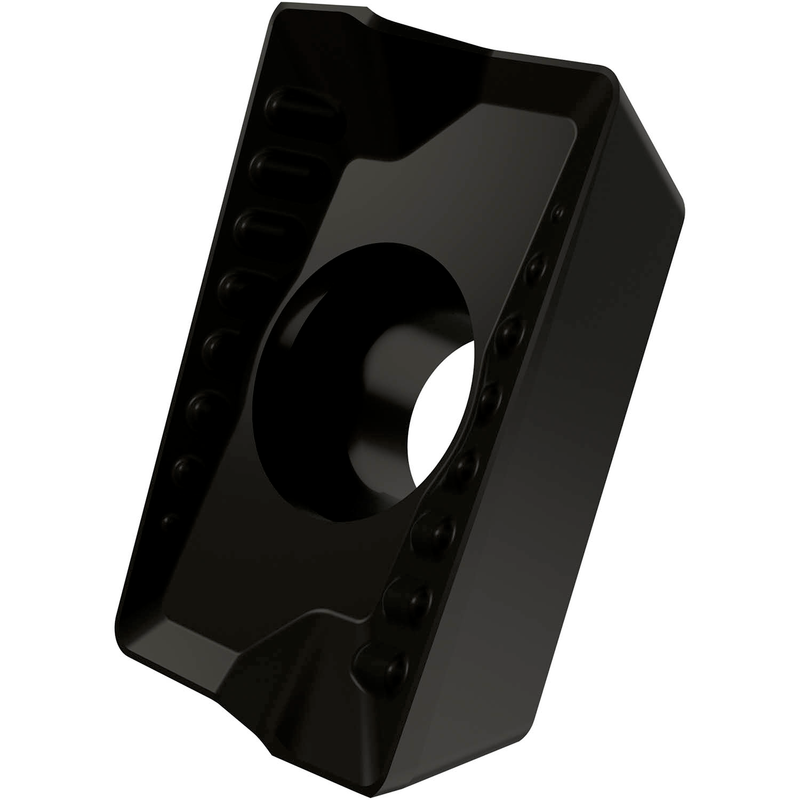

Plaquette de fraisage simple face ADKT 1505 avec brise-copeaux, parallélogramme à 85° pour une profondeur de coupe maximale de 12,99 mm, avec un rayon de bec de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO K et une géométrie M avec arêtes de coupe arrondies, en carbure WC-Co revêtu MT-CVD M9325 pour l'usinage de l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ADKT 1505PDER-M:M9325
GradeM9325
Chipbreaker (CBMD)M
Product Number6754542
Product FamilyADKT 15

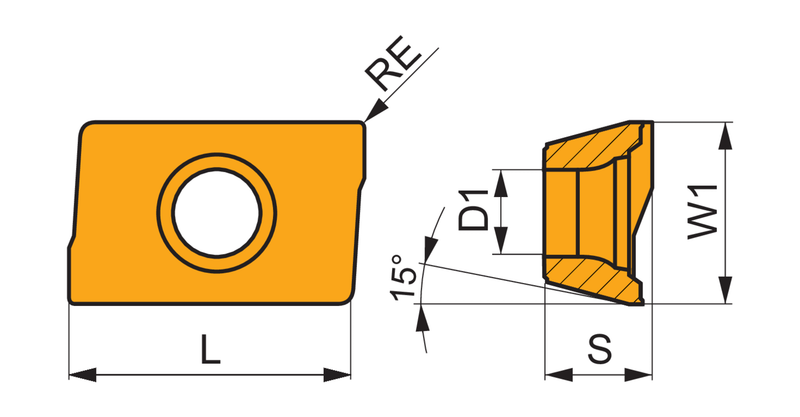

Insert Geometry
Insert DesignDAKT
Insert Shape Code (SC)A - parallélogramme angle compris de 85°
Insert Thickness — in (S)0.22"
Insert Thickness — mm (S)5.6 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.512"
Depth of Cut Max — mm (APMX)13.0 mm
Tool Information
Reference Numbers
EDP Number6754542
EAN3603602899088
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
File Type Download
ADKT 1505PDER-M:M9325 — Line Drawing PDF Download
