SDMT 120508SR-M:M9325
SDMT 120508SR-M:M9325

SDMT 120508SR-M:M9325

UGC DOR6754562
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.46 CAD - $25.46 CAD
$25.46 CAD
$25.46 CAD - $25.46 CAD
$25.46 CAD

Vendu en lots de : 10

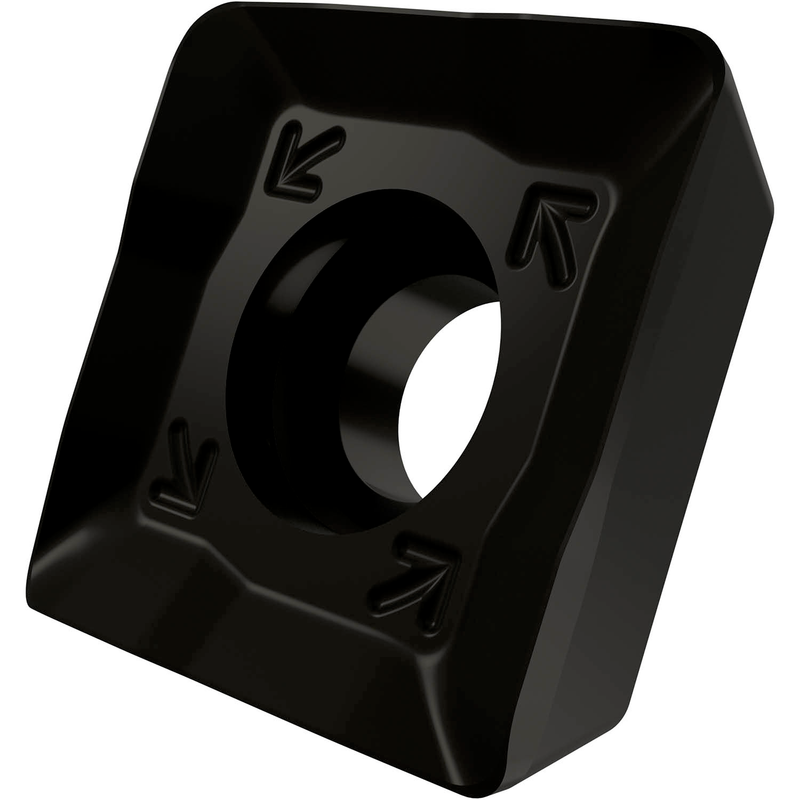

Plaquette de fraisage simple face SDMT 1205 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 10 mm, avec un rayon de coin de 0,8 mm, une précision d'indexage selon la classe de tolérance ISO-M et une géométrie M avec des arêtes de coupe arrondies et un chanfrein, carbure WC-Co revêtu M9325 MT-CVD pour l'usinage de l'acier avec les fraises à épaulement SSD12

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDMT 120508SR-M:M9325
GradeM9325
Chipbreaker (CBMD)M
Product Number6754562
Product FamilySDMT 12

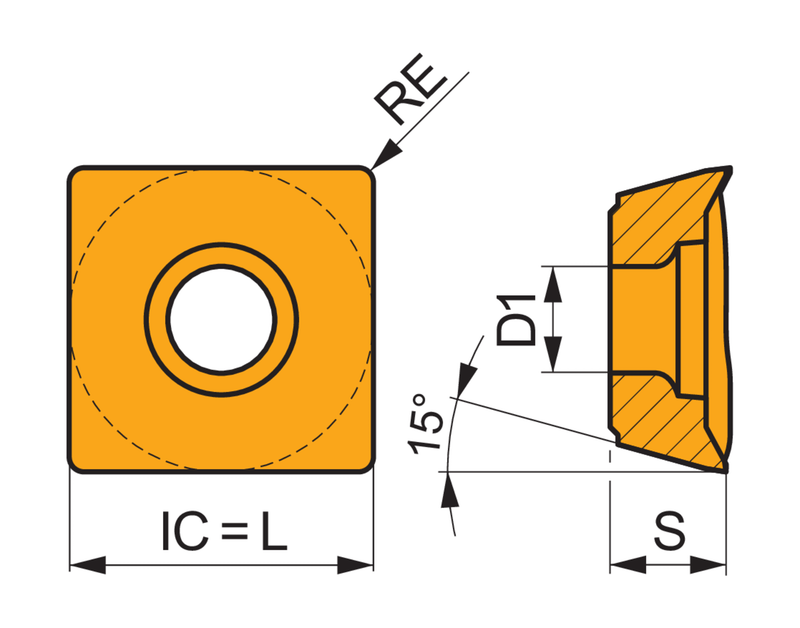

Insert Geometry
Insert DesignSDMT
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.0 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number6754562
EAN3603602899286
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
SDMT 120508SR-M:M9325 — Line Drawing PDF Download
