SEET 12T3M-PM:M9325
SEET 12T3M-PM:M9325

SEET 12T3M-PM:M9325

UGC DOR6754568
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.66 CAD - $23.66 CAD
$23.66 CAD
$23.66 CAD - $23.66 CAD
$23.66 CAD

Vendu en lots de : 10

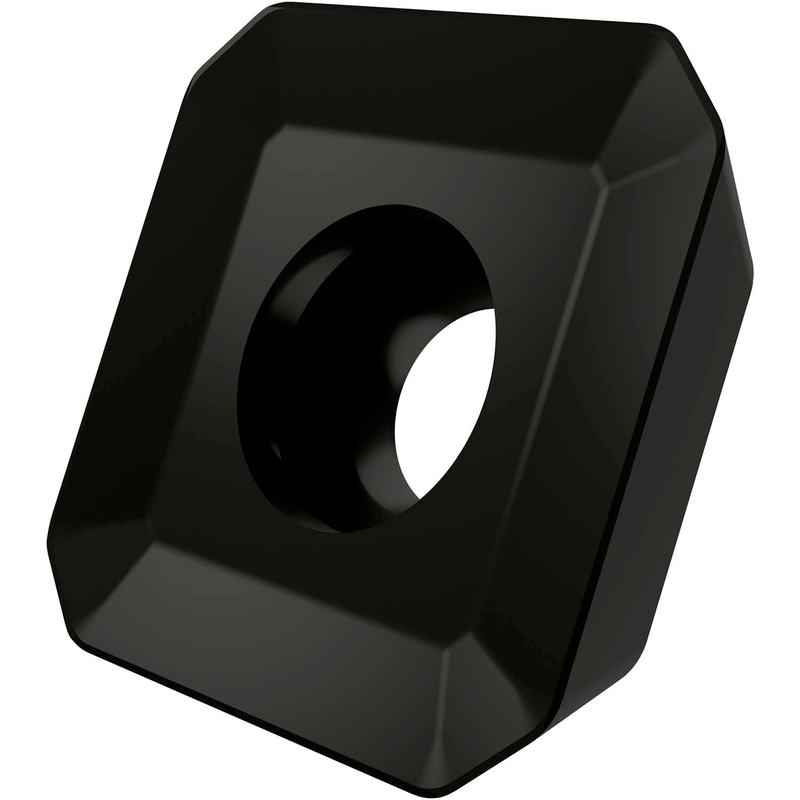

Plaquette de fraisage simple face SEET 12T3 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 6.5 mm, avec un rayon de coin de 0.8 mm, une précision de positionnement selon la classe de tolérance ISO E et une géométrie PM avec des arêtes de coupe arrondies et un double chanfrein, en carbure WC-Co revêtu M9325 MT-CVD pour l'usinage de l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SEET 12T3M-PM:M9325
GradeM9325
Chipbreaker (CBMD)MP
Product Number6754568
Product FamilySEET 12h00
Insert Geometry
Insert DesignVU
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.528"
Inscribed Circle Dia. — mm (IC)13.4 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number6754568
EAN3603602899347
File Type Download

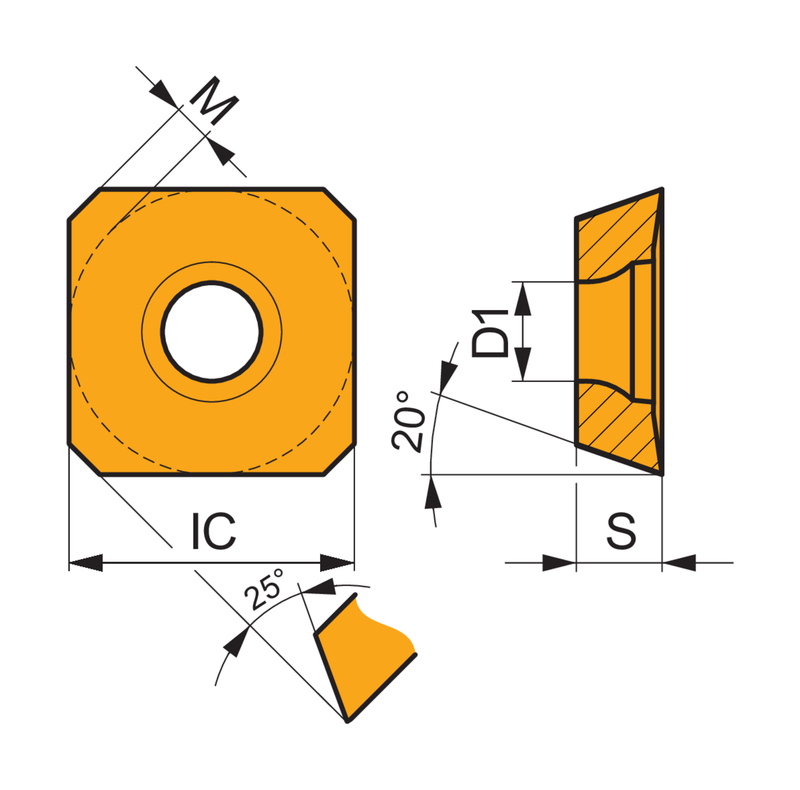

SEET 12T3M-PM:M9325 — Line Drawing PDF Download
