SNMT 1205AZSR-R:M9325
SNMT 1205AZSR-R:M9325

SNMT 1205AZSR-R:M9325

UGC DOR6754576
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.63 CAD - $28.63 CAD
$28.63 CAD
$28.63 CAD - $28.63 CAD
$28.63 CAD

Vendu en lots de : 10

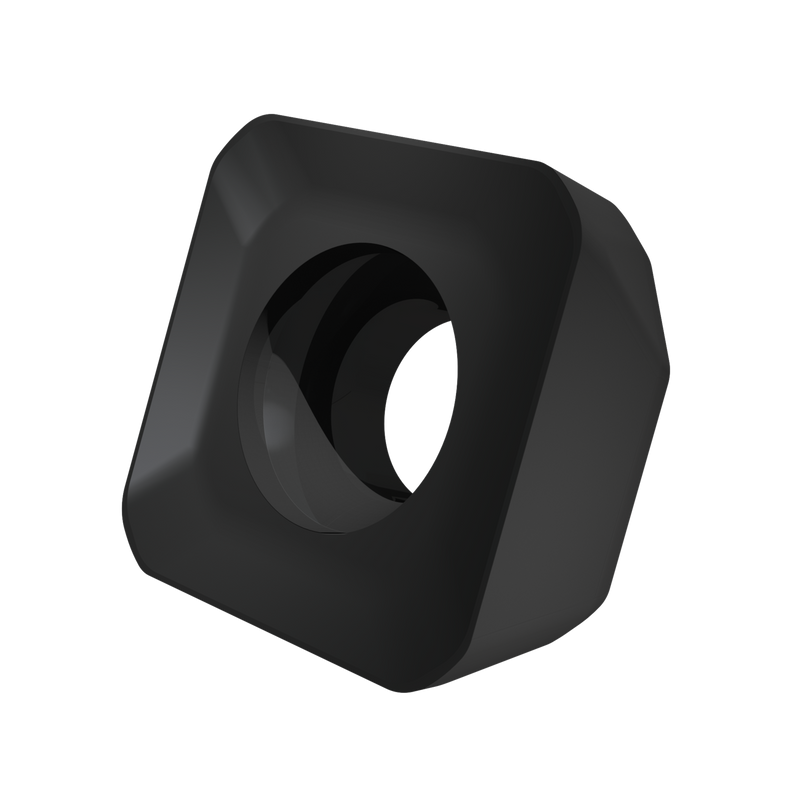

Plaquette de fraisage simple face SNMT 1205 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 6,5 mm (0,2559"), avec rayon de coin ", une précision d'indexation selon la classe de tolérance ISO-M et géométrie R avec arêtes de coupe arrondies et facette, carbure WC-Co revêtu MT-CVD M9325 pour l'usinage de l'acier avec les fraises SSN12Z

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMT 1205AZSR-R:M9325
GradeM9325
Chipbreaker (CBMD)R
Product Number6754576
Product FamilySNMT 12

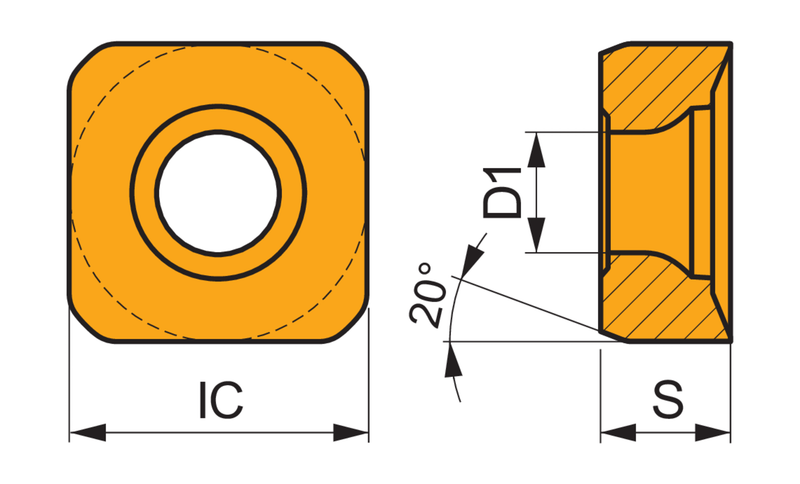

Insert Geometry
Insert DesignTNMS
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number6754576
EAN3603602899422
File Type Download
SNMT 1205AZSR-R:M9325 — Line Drawing PDF Download
