TPKN 43PDSR:M9325
TPKN 43PDSR:M9325

TPKN 43PDSR:M9325

UGC DOR6754581
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.11 CAD - $20.11 CAD
$20.11 CAD
$20.11 CAD - $20.11 CAD
$20.11 CAD

Vendu en lots de : 10

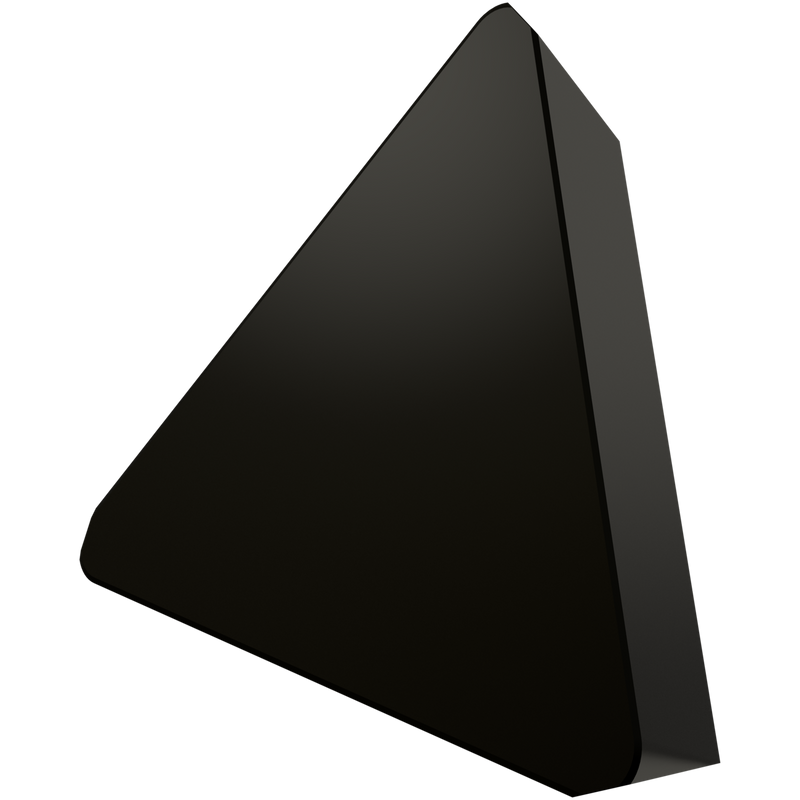

Plaquette de fraisage simple face TPKN 2204 à surface d'attaque plane, triangulaire pour une profondeur de coupe maximale de 17 mm, avec rayon de coin ", une précision de positionnement selon la classe de tolérance ISO-K avec arêtes de coupe et facette arrondies, en carbure WC-Co revêtu M9325 MT-CVD

For more information about this product, click here

Identification
Ordering Code (ANSI)TPKN 43PDSR:M9325
Product Name (ISO)TPKN 2204PDSR:M9325
GradeM9325
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6754581
Product FamilyTPKN

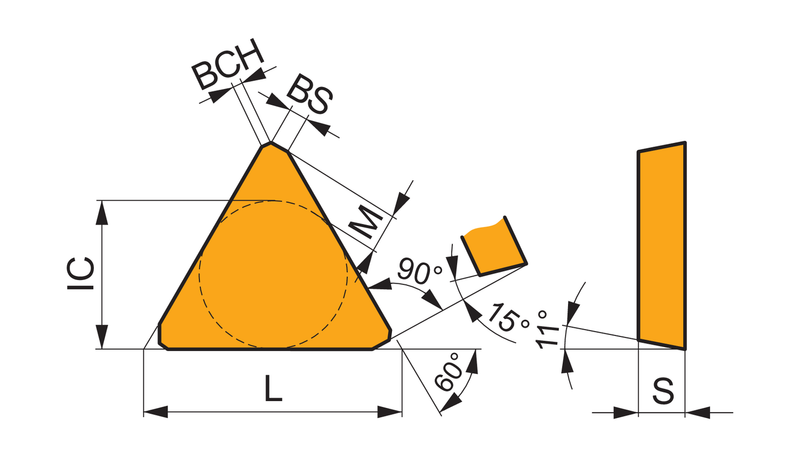

Insert Geometry
Insert DesignTPKN
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.669"
Depth of Cut Max — mm (APMX)17.0 mm
Tool Information
Reference Numbers
EDP Number6754581
EAN3603602899477
File Type Download
TPKN 43PDSR:M9325 — Line Drawing PDF Download
