TPKR 43PDSR:M9325
TPKR 43PDSR:M9325

TPKR 43PDSR:M9325

UGC DOR6754582
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.11 CAD - $20.11 CAD
$20.11 CAD
$20.11 CAD - $20.11 CAD
$20.11 CAD

Vendu en lots de : 10

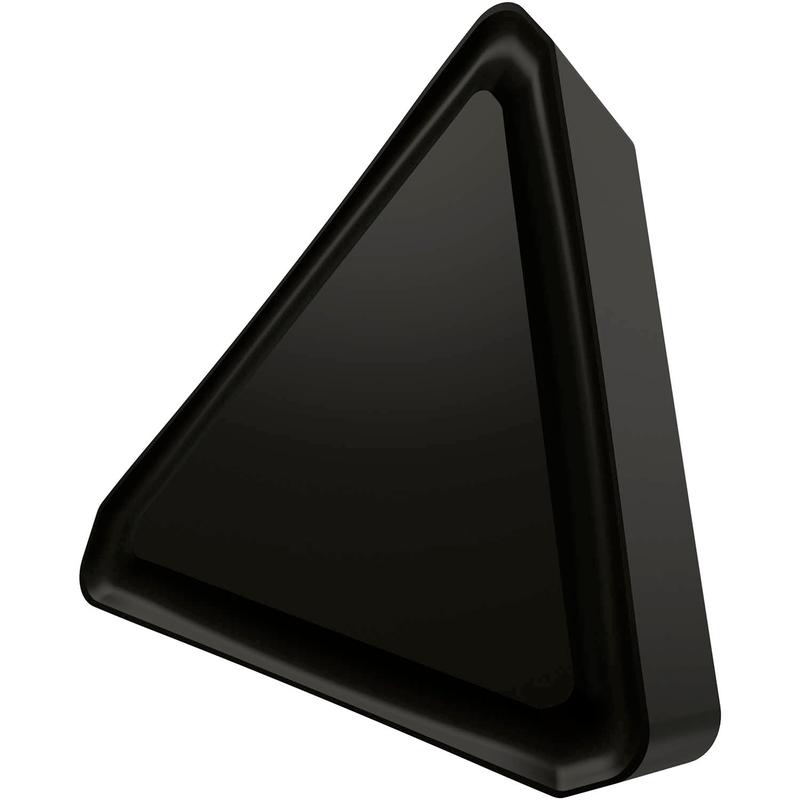

Plaquette de fraisage simple face TPKR 2204 avec brise-copeaux, triangulaire pour une profondeur de coupe maximale de 17 mm (0,6693"), avec rayon de coin ", une précision de positionnement selon la classe de tolérance ISO-K avec arêtes de coupe arrondies et facette, en carbure WC-Co revêtu M9325 MT-CVD pour l'usinage de l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI)TPCR 43PRSR:M9325
Product Name (ISO)TPKR 2204PDSR:M9325
GradeM9325
Chipbreaker (CBMD)Avec brise-copeaux – aucune désignation
Product Number6754582
Product FamilyTPCR

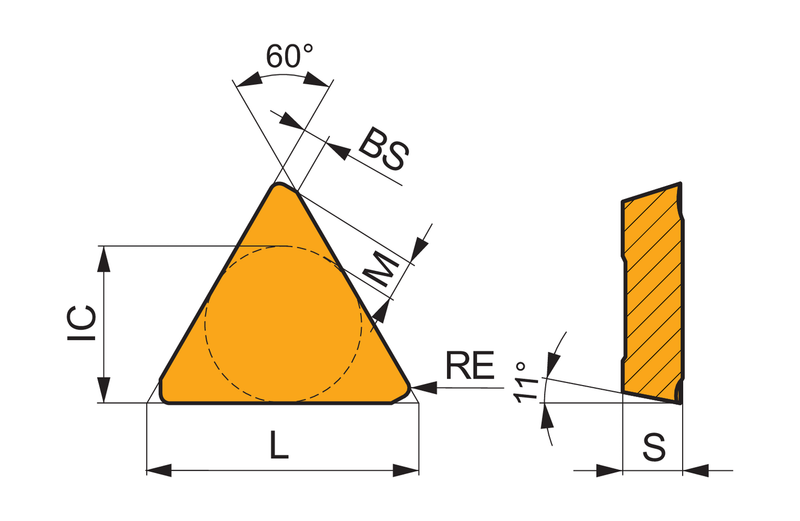

Insert Geometry
Insert DesignTPCR
Insert Shape Code (SC)T - angle de 60° inclus triangulaire
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.669"
Depth of Cut Max — mm (APMX)17.0 mm
Tool Information
Reference Numbers
EDP Number6754582
EAN3603602899484
File Type Download
TPKR 43PDSR:M9325 — Line Drawing PDF Download
