SEET 12T3M-PM:M9340
SEET 12T3M-PM:M9340

SEET 12T3M-PM:M9340

UGC DOR6754599
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.66 CAD - $23.66 CAD
$23.66 CAD
$23.66 CAD - $23.66 CAD
$23.66 CAD

Vendu en lots de : 10

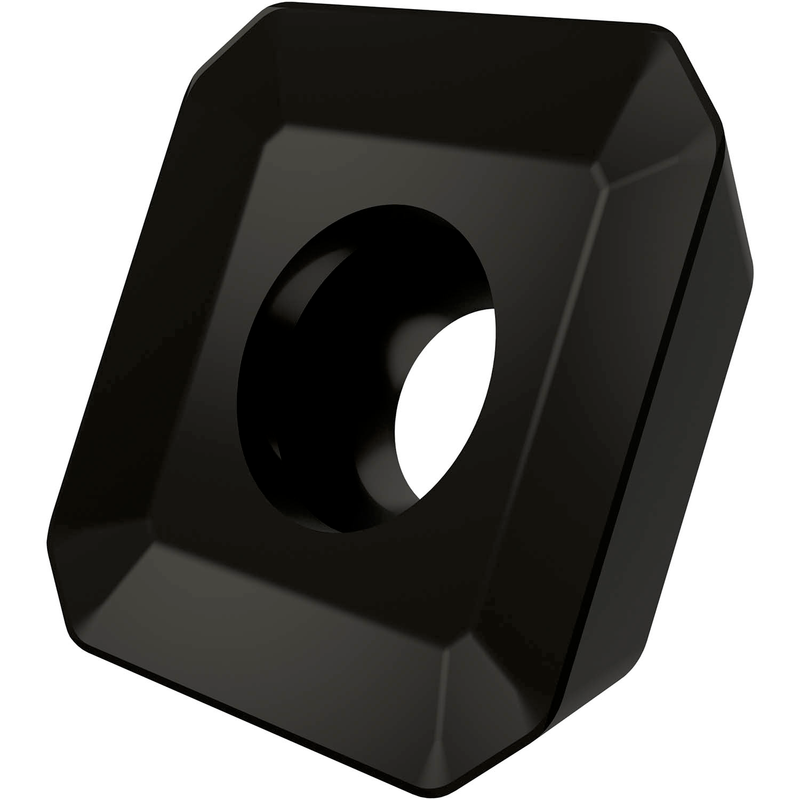

Plaquette de fraisage simple face SEET 12T3 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 6,5 mm, avec un rayon de coin de ", une précision d'indexage selon la classe de tolérance ISO-E et une géométrie PM avec des arêtes de coupe arrondies et une double facette, en carbure WC-Co revêtu M9340 MT-CVD dans la gamme de nuances ISO M30-M40 pour l'usinage de l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SEET 12T3M-PM:M9340
GradeM9340
Chipbreaker (CBMD)MP
Product Number6754599
Product FamilySEET 12h00
Insert Geometry
Insert DesignVOIR
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.528"
Inscribed Circle Dia. — mm (IC)13.4 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number6754599
EAN3603602899651
File Type Download

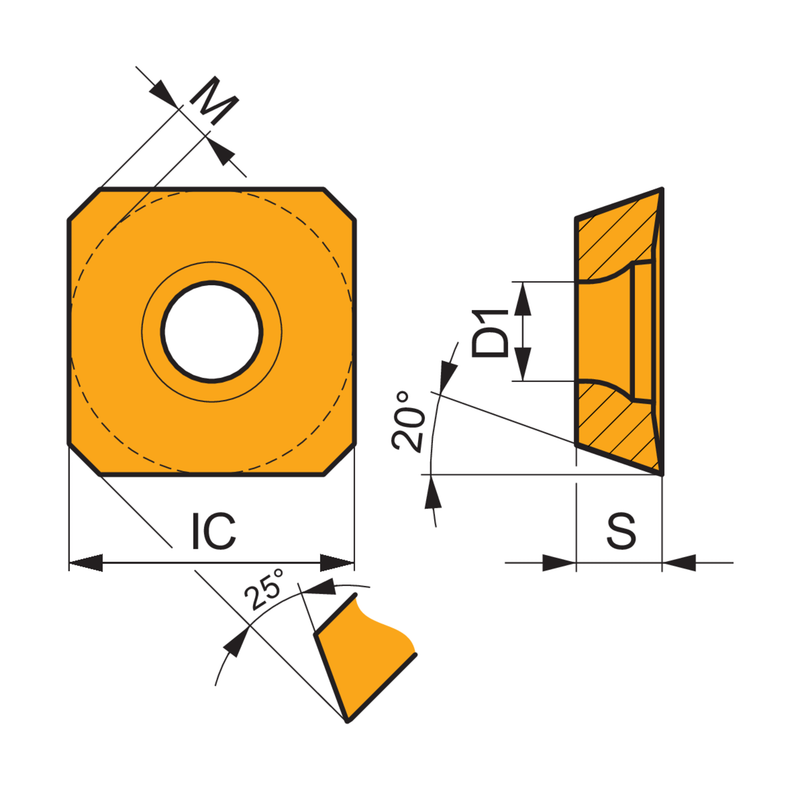

SEET 12T3M-PM:M9340 — Line Drawing PDF Download
