SDMT 120508PR-R:M9315
SDMT 120508PR-R:M9315

SDMT 120508PR-R:M9315

UGC DOR6754610
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.46 CAD - $25.46 CAD
$25.46 CAD
$25.46 CAD - $25.46 CAD
$25.46 CAD

Vendu en lots de : 10

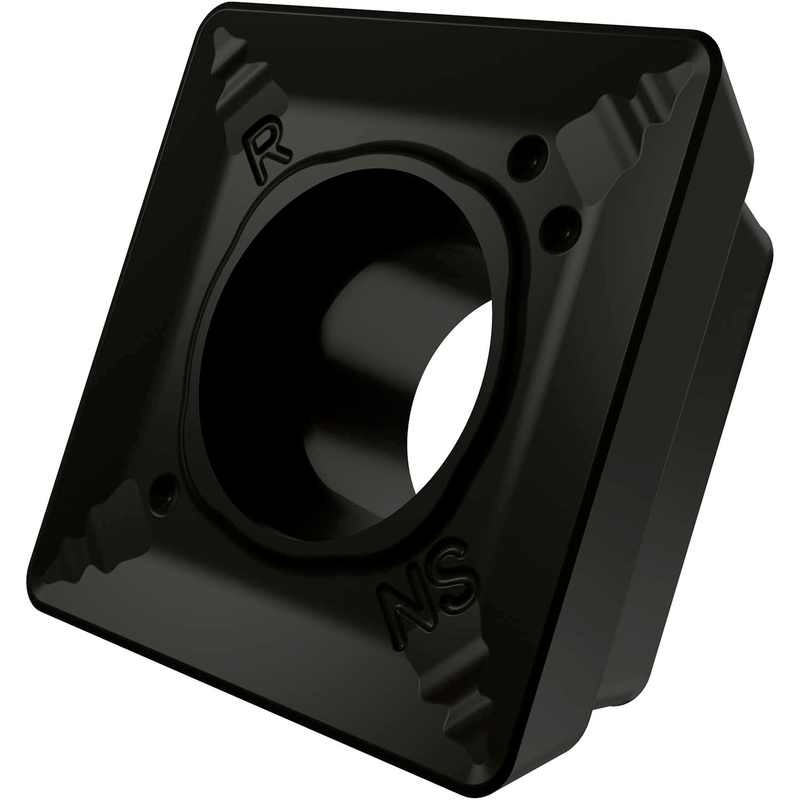

Plaquette de fraisage simple face SDMT 1205 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 10 mm (0,3937"), avec un rayon de coin de 0,8 mm (0,0315"), une précision d'indexage selon la classe de tolérance ISO-M et une géométrie R avec des arêtes de coupe arrondies et double facette, en carbure WC-Co revêtu MT-CVD M9315 dans la gamme de nuances ISO P05-P25 pour l'usinage de l'acier avec des fraises à épaulement SSD12

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDMT 120508PR-R:M9315
GradeM9315
Chipbreaker (CBMD)R
Product Number6754610
Product FamilySDMT 12

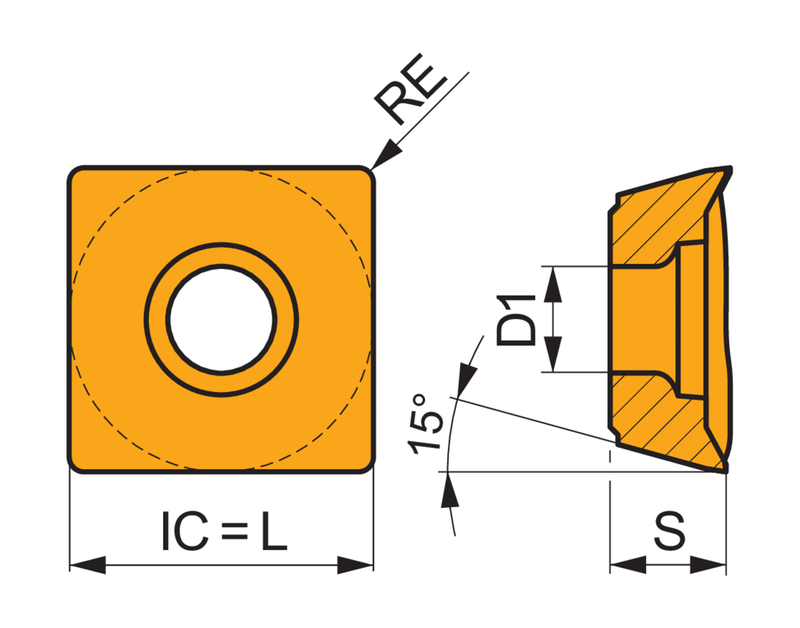

Insert Geometry
Insert DesignSDMT
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.0 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number6754610
EAN3603602899767
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
File Type Download
SDMT 120508PR-R:M9315 — Line Drawing PDF Download
