VU 42AFSN:M9315
VU 42AFSN:M9315

VU 42AFSN:M9315

UGC DOR6754611
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.19 CAD - $16.19 CAD
$16.19 CAD
$16.19 CAD - $16.19 CAD
$16.19 CAD

Vendu en lots de : 10

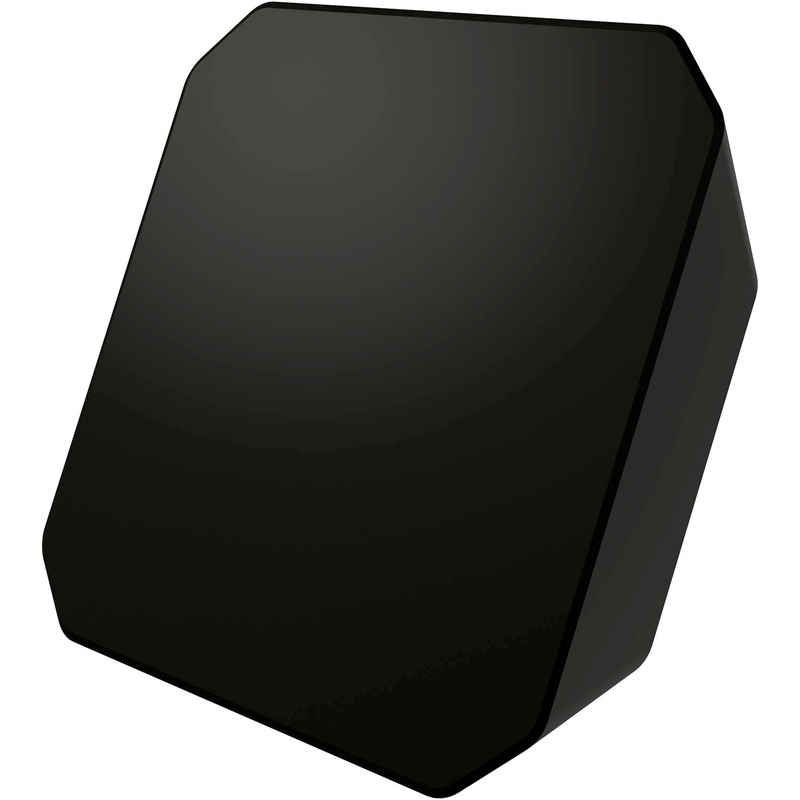

Plaquette de fraisage simple face SEEN 1203 à surface de coupe plane, carrée pour une profondeur de coupe maximale de 6,5 mm, avec rayon de coin ", une précision d'indexation selon la classe de tolérance ISO-E avec arêtes de coupe et facette arrondies, en carbure WC-Co revêtu M9315 MT-CVD

For more information about this product, click here

Identification
Ordering Code (ANSI)VU 42AFSN:M9315
Product Name (ISO)VU 1203AFSN:M9315
GradeM9315
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6754611
Product FamilyVU

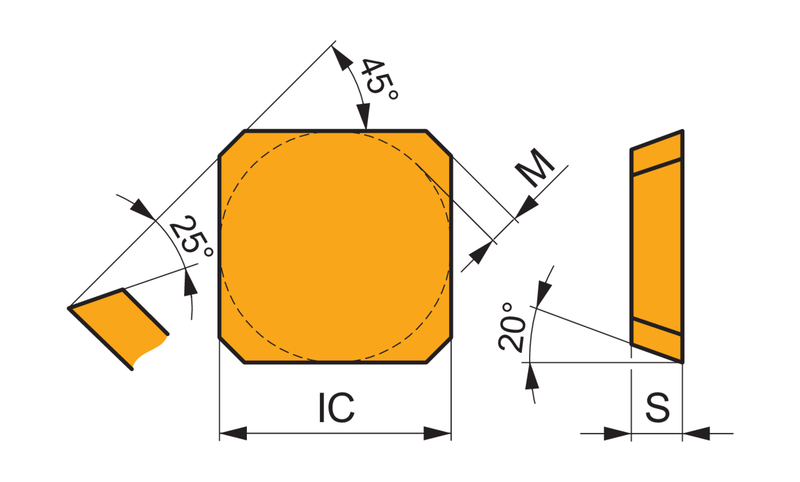

Insert Geometry
Insert DesignVU
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number6754611
EAN3603602899774
File Type Download
VU 42AFSN:M9315 — Line Drawing PDF Download
