APKT 1604PDR-HM:M5315
APKT 1604PDR-HM:M5315

APKT 1604PDR-HM:M5315

UGC DOR6754625
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.89 CAD - $16.89 CAD
$16.89 CAD
$16.89 CAD - $16.89 CAD
$16.89 CAD

Vendu en lots de : 10

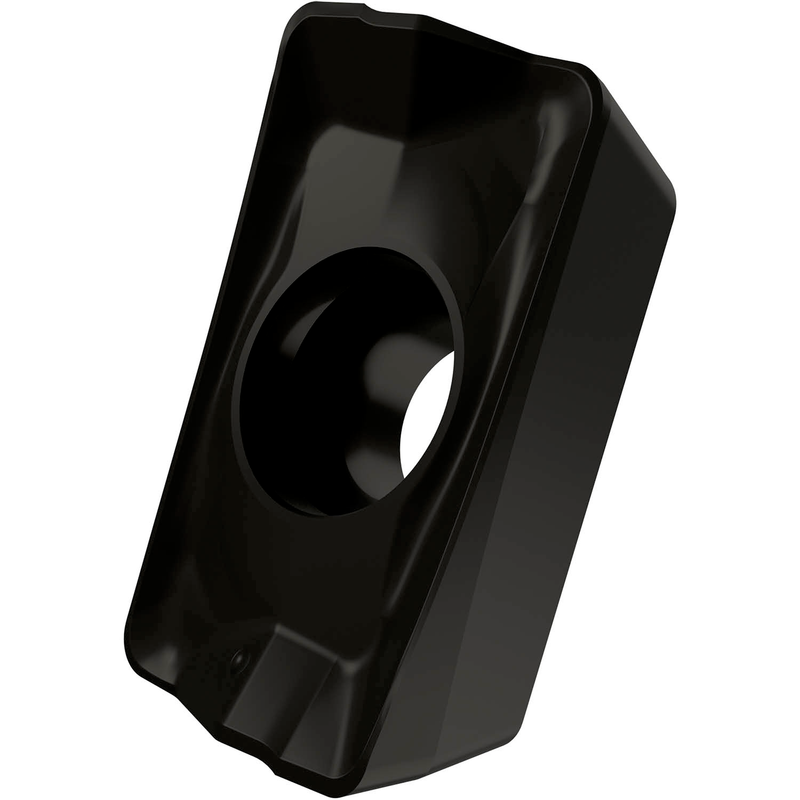

Plaquette de fraisage simple face APKT 1604 avec brise-copeaux, parallélogramme 85° pour une profondeur de coupe maximale de 13 mm, avec un rayon de coin de 0,8 mm, une précision d'indexage selon la classe de tolérance ISO-K et une géométrie HM, en carbure WC-Co revêtu MT-CVD M5315 dans la plage de nuances ISO K05-K25 pour l'usinage de la fonte avec les fraises à épaulement SAP16D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)APKT 1604PDR-HM:M5315
GradeM5315
Chipbreaker (CBMD)SM
Product Number6754625
Product FamilyAPKT 16

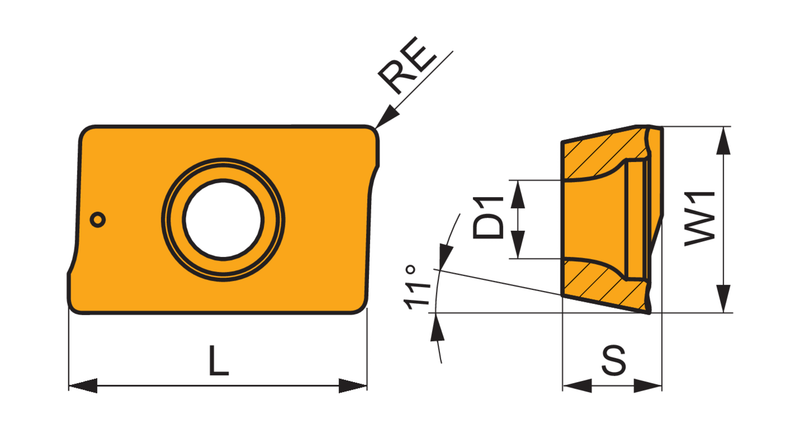

Insert Geometry
Insert DesignAPKT
Insert Shape Code (SC)A - parallélogramme angle inclus de 85°
Insert Thickness — in (S)0.223"
Insert Thickness — mm (S)5.67 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.512"
Depth of Cut Max — mm (APMX)13.0 mm
Tool Information
Reference Numbers
EDP Number6754625
EAN3603602899910
File Type Download
APKT 1604PDR-HM:M5315 — Line Drawing PDF Download
