SNMT 1205AZSR-R:M5315
SNMT 1205AZSR-R:M5315

SNMT 1205AZSR-R:M5315

UGC DOR6754628
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.63 CAD - $28.63 CAD
$28.63 CAD
$28.63 CAD - $28.63 CAD
$28.63 CAD

Vendu en lots de : 10

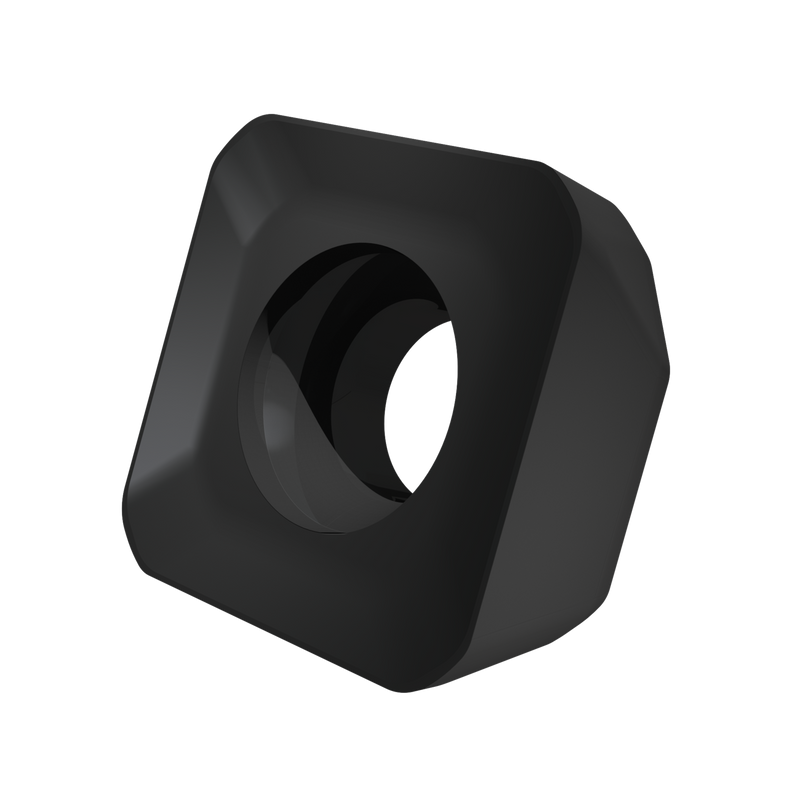

Plaquette de fraisage simple face SNMT 1205 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 6,5 mm, avec un rayon de coin de ", une précision d'indexage selon la classe de tolérance ISO-M et une géométrie R avec arêtes de coupe arrondies et facette, en carbure WC-Co revêtu M5315 MT-CVD pour l'usinage avec des fraises à surfacer SSN12Z

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMT 1205AZSR-R:M5315
GradeM5315
Chipbreaker (CBMD)R
Product Number6754628
Product FamilySNMT 12
Insert Geometry
Insert DesignTMNA
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Depth of Cut Max — in (APMX)0.256"
Depth of Cut Max — mm (APMX)6.5 mm
Tool Information
Reference Numbers
EDP Number6754628
EAN3603602899941
File Type Download

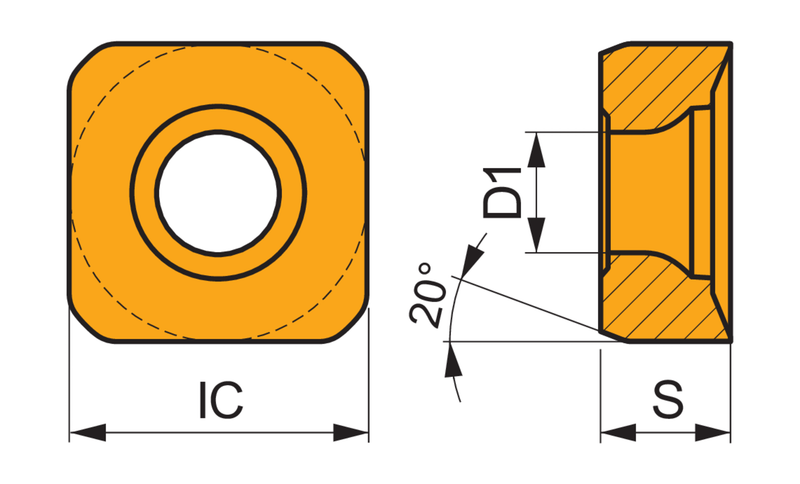

SNMT 1205AZSR-R:M5315 — Line Drawing PDF Download
