SCET 050204-UD:D8330
SCET 050204-UD:D8330

SCET 050204-UD:D8330

UGC DOR6754634
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.36 CAD - $17.36 CAD
$17.36 CAD
$17.36 CAD - $17.36 CAD
$17.36 CAD

Vendu en lots de : 10

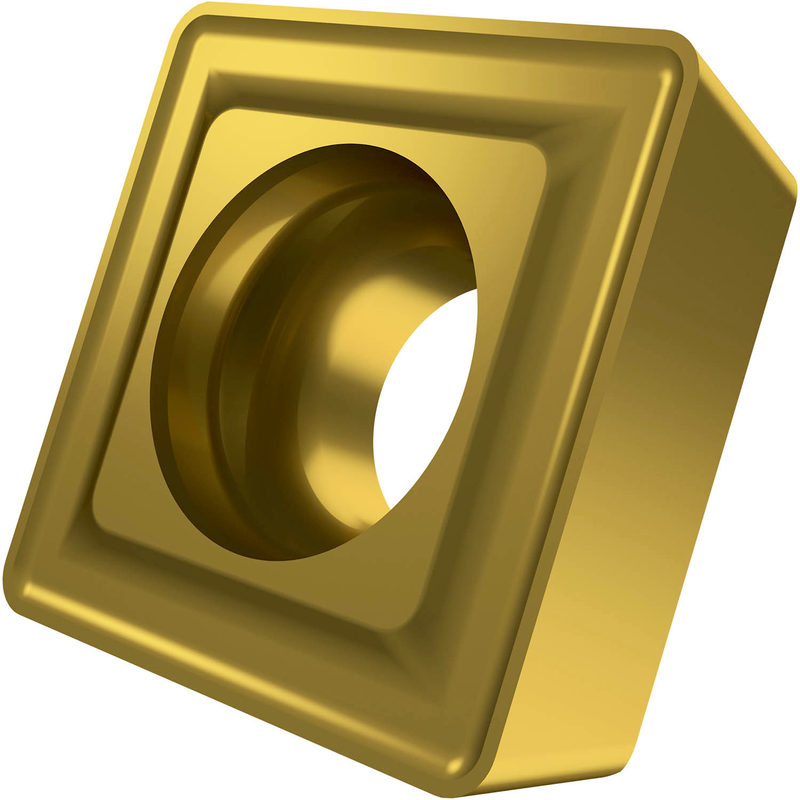

Plaquette de forage pour loger la poche périphérique des forets indexables PRAMET 80.D dans une plage de diamètres de 0,591 à 0,748", carbure WC-Co à grain fin revêtu PVD D8330 dans les plages de grades ISO P20-P35 et K15-K35 avec une géométrie UD pour l'usinage de l'acier et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SCET 050204-UD:D8330
GradeD8330
Chipbreaker (CBMD)DU
Product Number6754634
Product FamilySCET

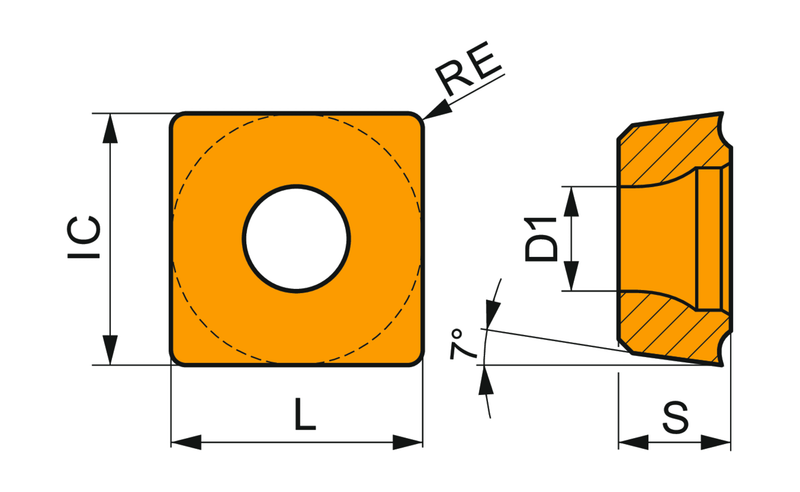

Insert Geometry
Insert DesignSCET
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.56 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number6754634
EAN3603602900005
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
File Type Download
SCET 050204-UD:D8330 — Line Drawing PDF Download
