WCMT 32.52-45:D8330
WCMT 32.52-45:D8330

WCMT 32.52-45:D8330

UGC DOR6754639
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.20 CAD - $30.20 CAD
$30.20 CAD
$30.20 CAD - $30.20 CAD
$30.20 CAD

Vendu en lots de : 10

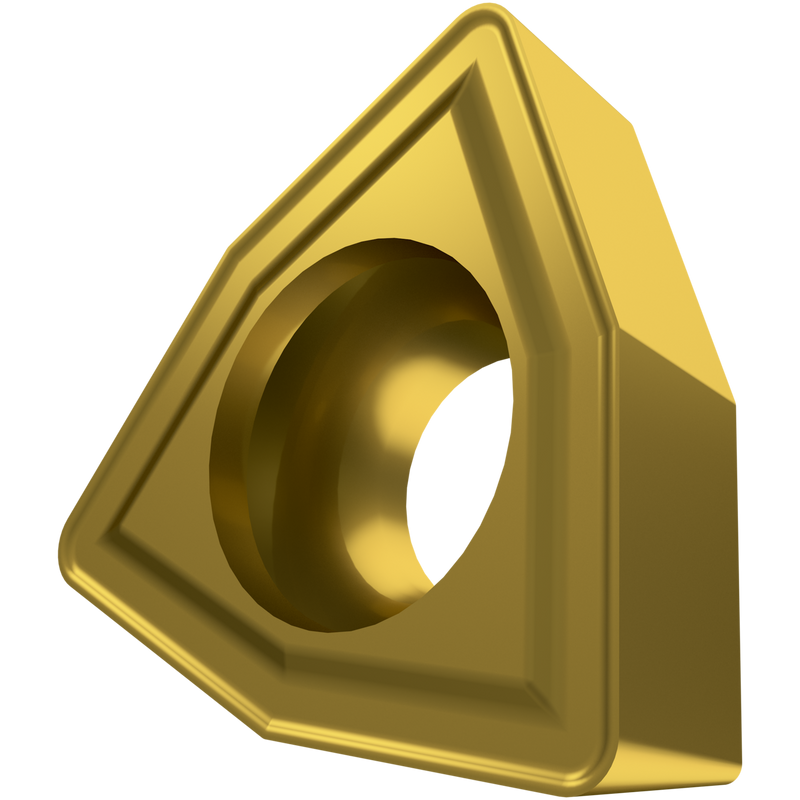

Plaquette de perçage WCMT 06T3.., D8330 en carbure WC-Co à grains fins revêtu PVD, classes ISO P20-P35 et K15-K35, avec géométrie 45, pour l'usinage de l'acier et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)WCMT 32.52-45:D8330
Product Name (ISO)WCMT 06T308E-45:D8330
GradeD8330
Chipbreaker (CBMD)45
Product Number6754639
Product FamilyID WCMT

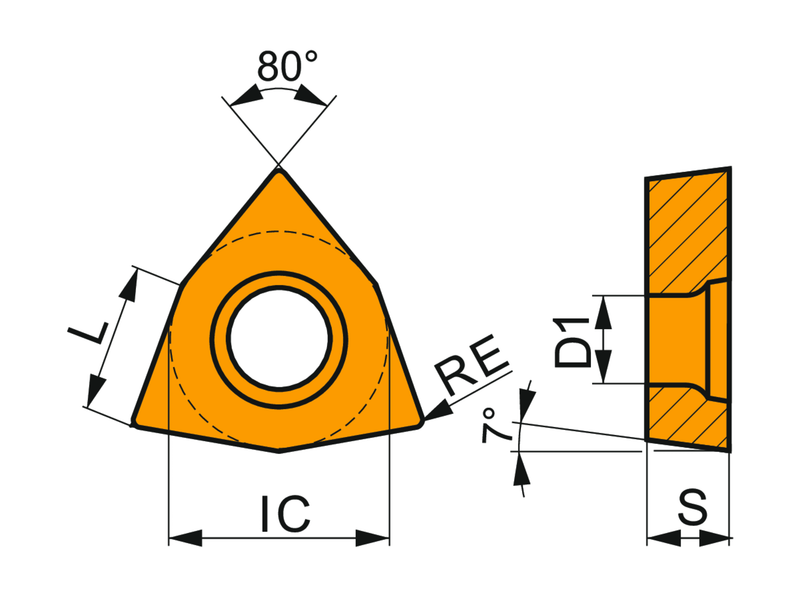

Insert Geometry
Insert DesignCMDT
Insert Shape Code (SC)W - trigone
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number6754639
EAN3603602900050
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
WCMT 32.52-45:D8330 — Line Drawing PDF Download
