SCET 060204-UD:D9335
SCET 060204-UD:D9335

SCET 060204-UD:D9335

UGC DOR6754651
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.16 CAD - $22.16 CAD
$22.16 CAD
$22.16 CAD - $22.16 CAD
$22.16 CAD

Vendu en lots de : 10

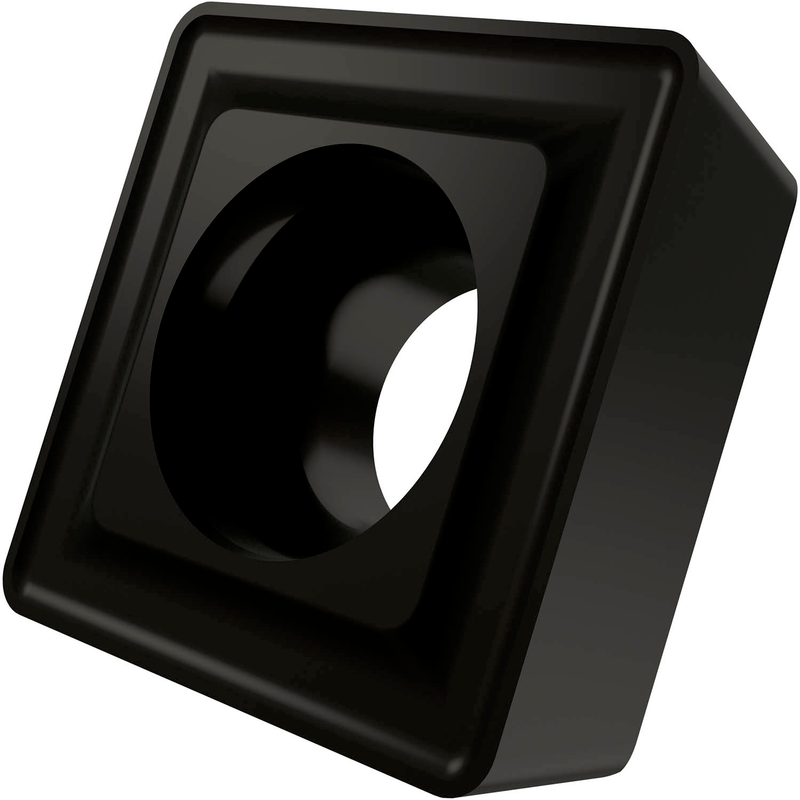

Plaquette de perçage pour s'adapter à la poche périphérique des forets indexables PRAMET 80.D dans une plage de diamètres de 19,5 à 22,0 mm, en carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD D9335 dans les plages de nuances ISO P20-P35 et K15-K35 avec géométrie UD pour l'usinage de l'acier et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SCET 060204-UD:D9335
GradeD9335
Chipbreaker (CBMD)DU
Product Number6754651
Product FamilySCET

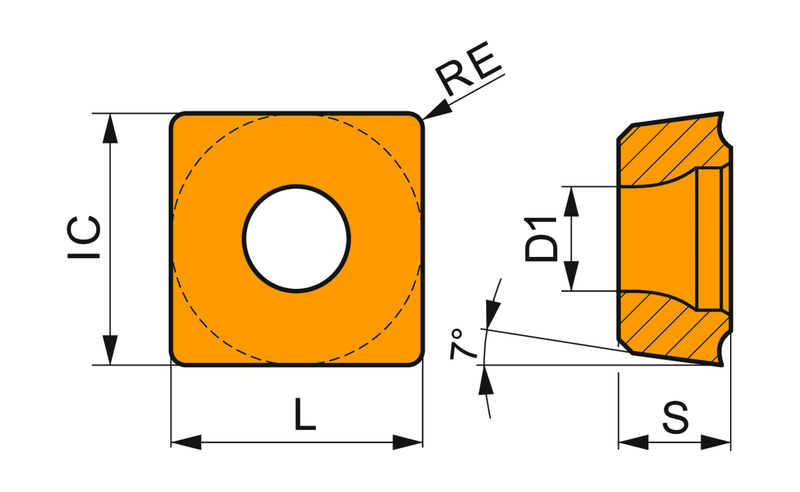

Insert Geometry
Insert DesignSCET
Insert Shape Code (SC)S - carré
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number6754651
EAN3603602900173
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
File Type Download
SCET 060204-UD:D9335 — Line Drawing PDF Download
