WCMX 06T308E-45:D8330
WCMX 06T308E-45:D8330

WCMX 06T308E-45:D8330

UGC DOR6754654
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.36 CAD - $25.36 CAD
$25.36 CAD
$25.36 CAD - $25.36 CAD
$25.36 CAD

Vendu en lots de : 10

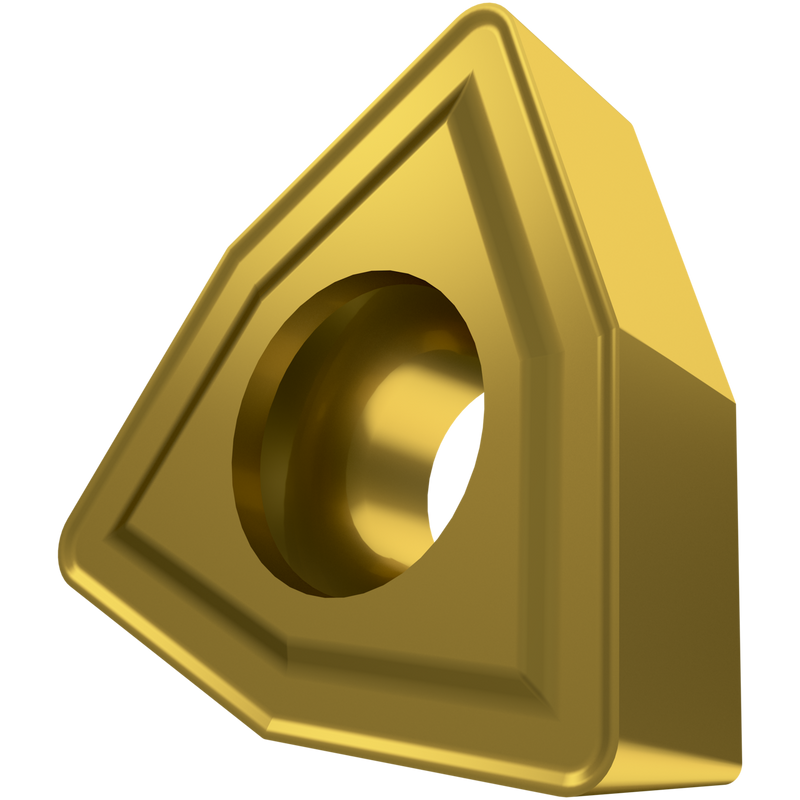

Plaquette de perçage WCMX 06T3.., carbure WC-Co à grains fins revêtu PVD dans les plages de nuances ISO P20-P35 et K15-K35 avec géométrie 45 pour l'usinage de l'acier et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WCMX 06T308E-45:D8330
GradeD8330
Chipbreaker (CBMD)45
Product Number6754654
Product FamilyWCMX

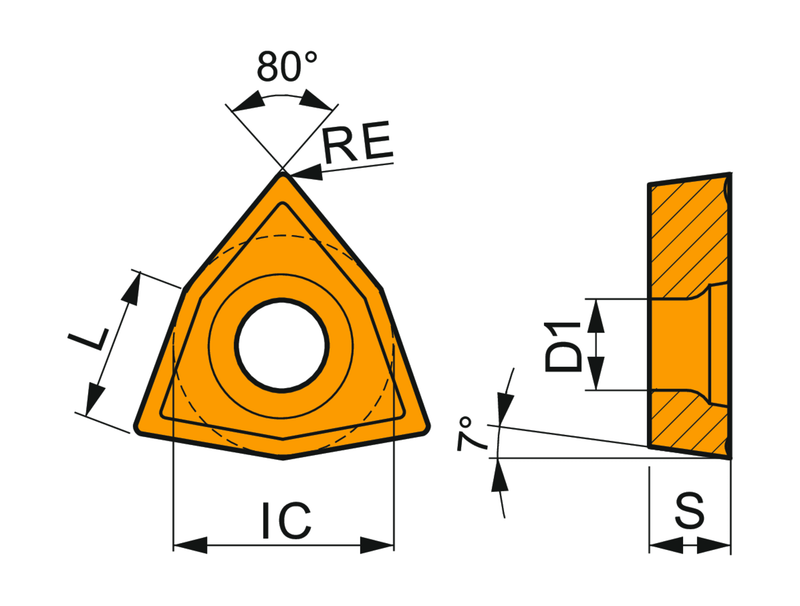

Insert Geometry
Insert DesignWCMX
Insert Shape Code (SC)W - trigone
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number6754654
EAN3603602900203
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
WCMX 06T308E-45:D8330 — Line Drawing PDF Download
