XPET 12T3AP:D8345
XPET 12T3AP:D8345

XPET 12T3AP:D8345

UGC DOR6754658
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.36 CAD - $25.36 CAD
$25.36 CAD
$25.36 CAD - $25.36 CAD
$25.36 CAD

Vendu en lots de : 10

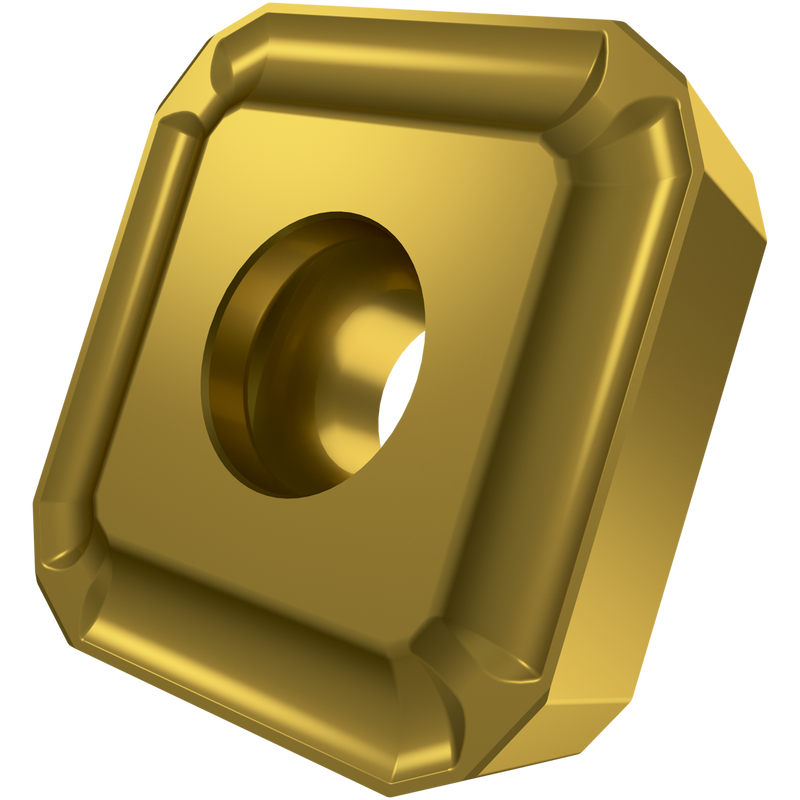

Plaquette de perçage pour adapter la poche centrale des forets indexables PRAMET 80.D dans une plage de diamètres de 1.535 à 1.693", carbure WC-Co à grain fin revêtu PVD D8345 dans la gamme de qualités ISO P30-P50 pour l'usinage de l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XPET 12T3AP:D8345
GradeD8345
Chipbreaker (CBMD)Avec brise-copeaux -aucune désignation
Product Number6754658
Product FamilyXPET
Insert Geometry
Insert DesignXPET
Insert Shape Code (SC)X - Special design
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Tool Information
Reference Numbers
EDP Number6754658
EAN3603602900241
Material Group Suitability
P — Steel and Cast Steel Primary use
K — Cast Iron Primary use
File Type Download

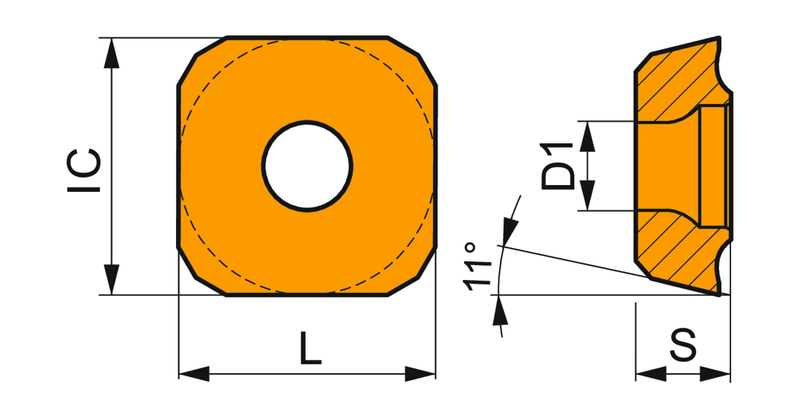

XPET 12T3AP:D8345 — Line Drawing PDF Download
