XPET 1504AP:D8345
XPET 1504AP:D8345

XPET 1504AP:D8345

UGC DOR6754659
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.20 CAD - $28.20 CAD
$28.20 CAD
$28.20 CAD - $28.20 CAD
$28.20 CAD

Vendu en lots de : 10

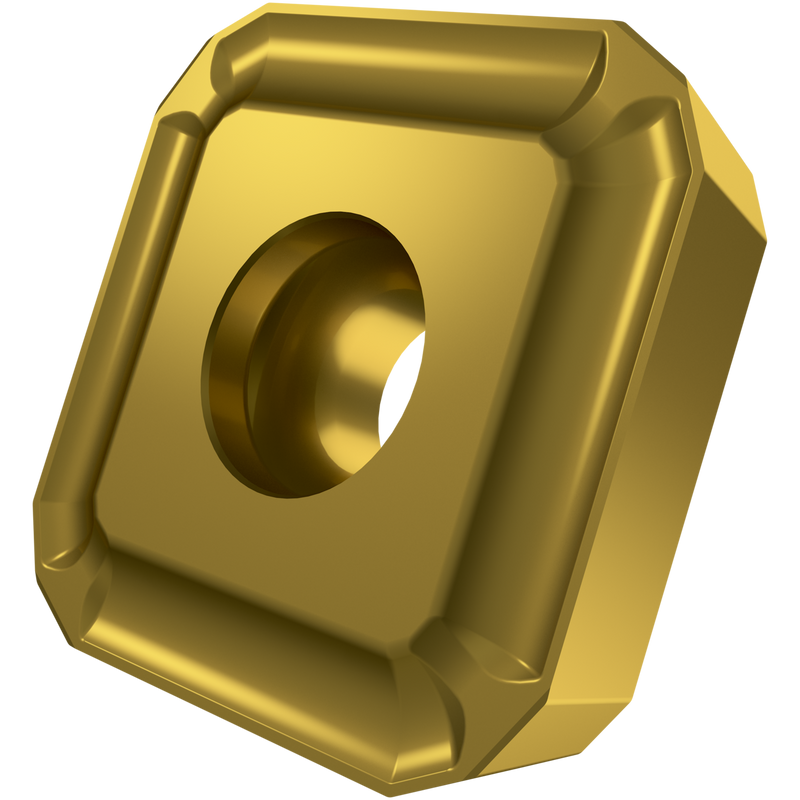

Plaquette de forage pour loger dans la poche centrale des forets indexables PRAMET 80.D dans une gamme de diamètres allant de 1,732 jusqu'à 2,008", en carbure WC-Co à grains fins revêtu PVD D8345 dans la gamme de nuances ISO P30-P50 pour l'usinage de l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XPET 1504AP:D8345
GradeD8345
Chipbreaker (CBMD)With chipbreaker -no designation
Product Number6754659
Product FamilyXPET
Insert Geometry
Insert DesignXPET
Insert Shape Code (SC)X - Special design
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Tool Information
Reference Numbers
EDP Number6754659
EAN3603602900258
Material Group Suitability
P — Steel and Cast Steel Primary use
K — Cast Iron Primary use
File Type Download
XPET 1504AP:D8345 — 3D Model STP Download

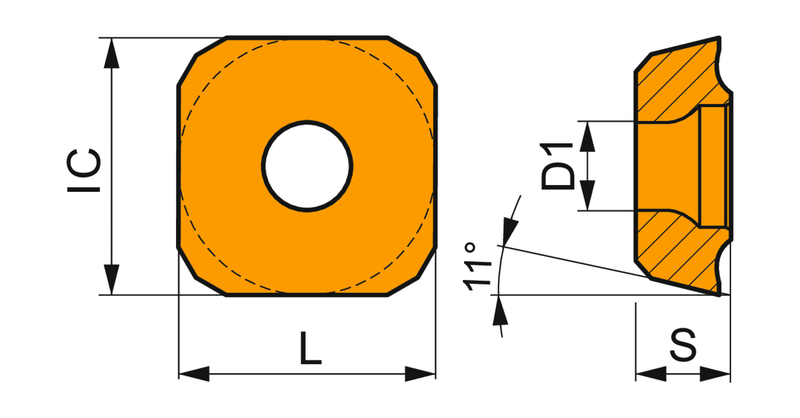

XPET 1504AP:D8345 — Line Drawing PDF Download
