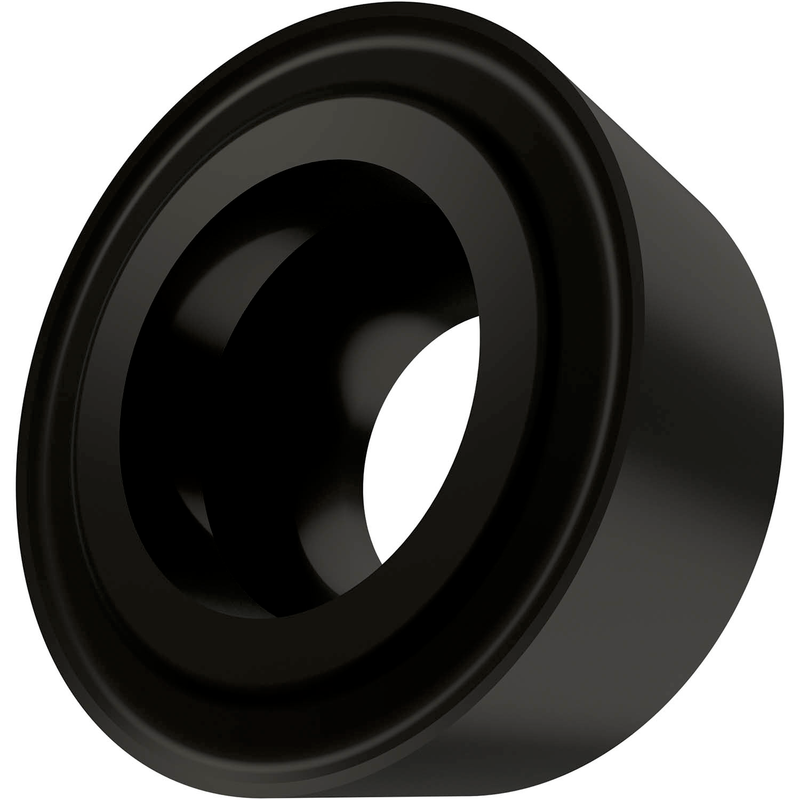

RCMT 0803MOE-UR:T9325
RCMT 0803MOE-UR:T9325

RCMT 0803MOE-UR:T9325

UGC DOR6754666
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.04 CAD - $11.04 CAD
$11.04 CAD
$11.04 CAD - $11.04 CAD
$11.04 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, ronde, dépouille de 7°, diamètre de 8 mm, épaisseur de 3,18 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux UR avec arêtes de coupe arrondies, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage fin à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 0803MOE-UR:T9325
GradeT9325
Chipbreaker (CBMD)VOUS
Product Number6754666
Product FamilyCRSM
Insert Geometry
Insert DesignCRMT
Insert Shape Code (SC)R - ronde
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6754666
EAN3603602900326
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
RCMT 0803MOE-UR:T9325 — Line Drawing PDF Download
