LCMF 041604-F:T9325
LCMF 041604-F:T9325

LCMF 041604-F:T9325

UGC DOR6754669
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.94 CAD - $33.94 CAD
$33.94 CAD
$33.94 CAD - $33.94 CAD
$33.94 CAD

Vendu en lots de : 10

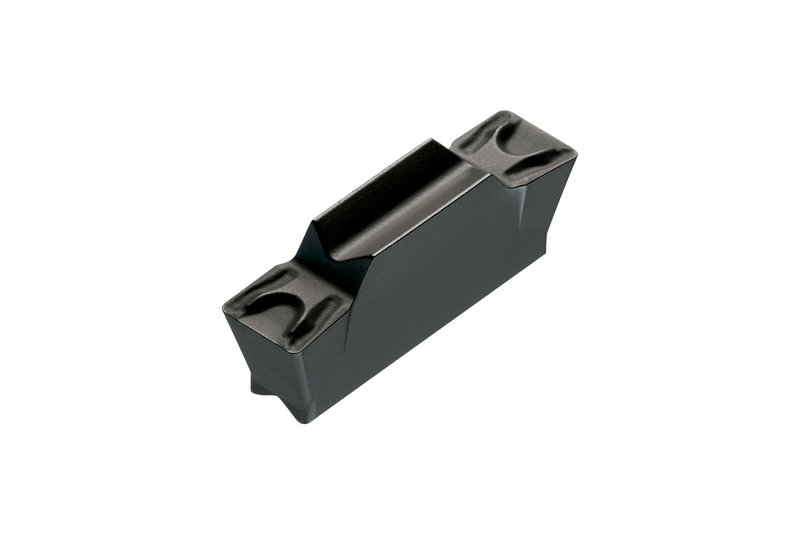

Plaquette de tronçonnage et gorge double face, de 16,4 mm de long, 4 mm de largeur de coupe et 0,4 mm de rayons de coin, précision selon la classe de tolérance M et brise-copeaux F, nuance carbure WC-Co à gradient fonctionnel revêtu MT-CVD T9325 dans les plages de nuances ISO P15-P35 et K15-K35 pour l'usinage de l'acier et de la fonte en combinaison avec les outils de tronçonnage et de gorge PRAMET GF..(RL) 04, GG..(RL) 04 et XLCCN 0416

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LCMF 041604-F:T9325
GradeT9325
Chipbreaker (CBMD)F
Product Number6754669
Product FamilyLCMF 16, LCMF 30 - F
Insert Geometry
Insert DesignLCMF 16, LCMF 30
Insert Shape Code (SC)L - rectangulaire
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Tool Information
Reference Numbers
EDP Number6754669
EAN3603602900357
File Type Download

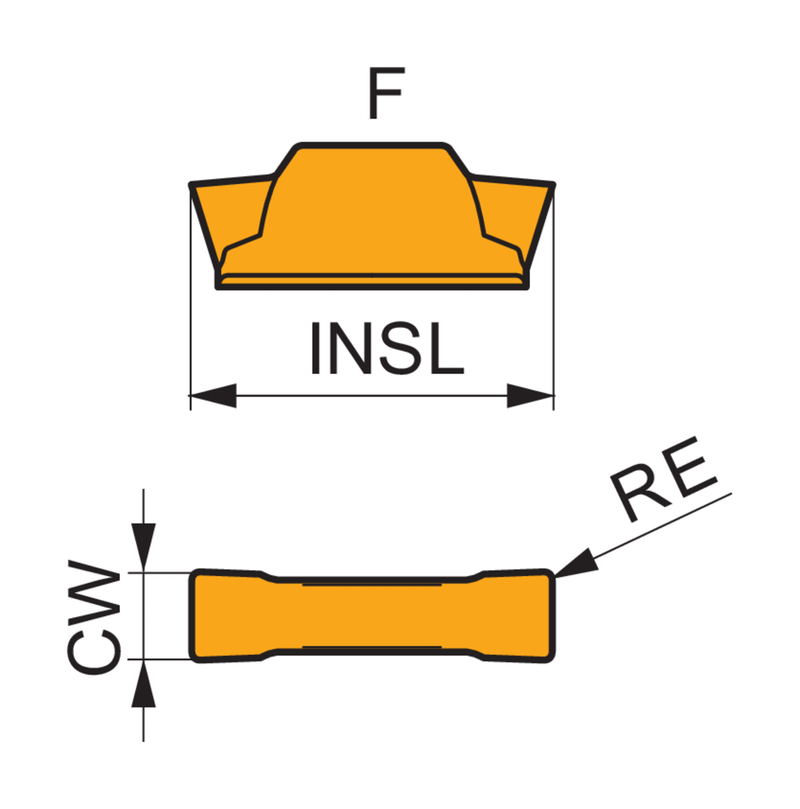

LCMF 041604-F:T9325 — Line Drawing PDF Download
