APKT 1003PDER-M:M9340
APKT 1003PDER-M:M9340

APKT 1003PDER-M:M9340

UGC DOR6754683
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.30 CAD - $15.30 CAD
$15.30 CAD
$15.30 CAD - $15.30 CAD
$15.30 CAD

Vendu en lots de : 10

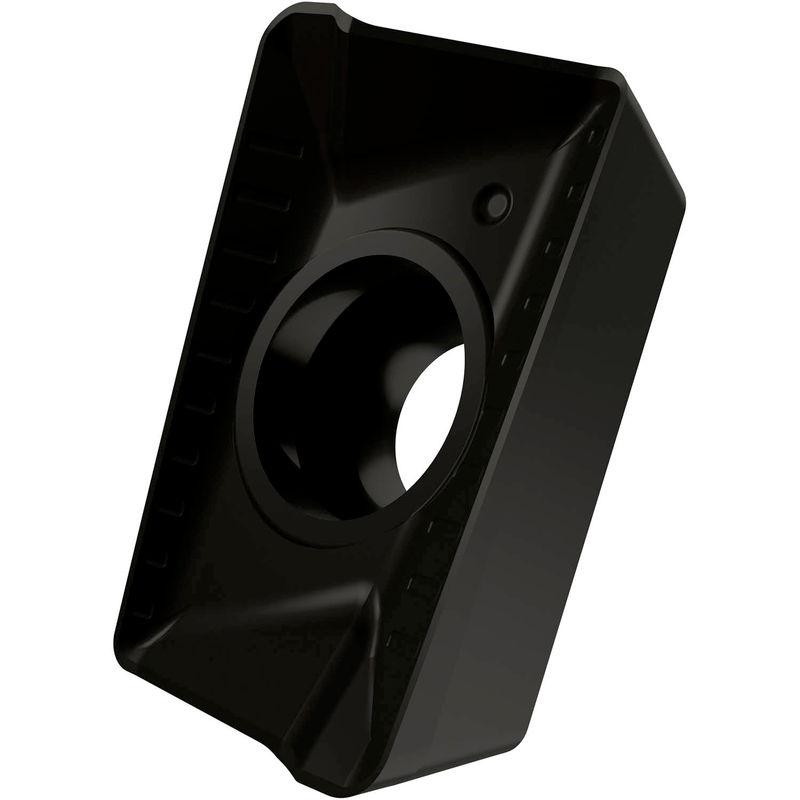

Plaquette de fraisage simple face APKT 1003 avec brise-copeaux, parallélogramme à 85° pour une profondeur de coupe maximale de 9 mm, rayon de pointe de 0,5 mm, une précision de positionnement selon la classe de tolérance ISO-K et une géométrie M avec des arêtes de coupe arrondies, en carbure WC-Co revêtu MT-CVD M9340 de nuance ISO M30-M40 pour l'usinage de l'acier inoxydable avec les fraises à épaulement SAP10D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)APKT 1003PDER-M:M9340
GradeM9340
Chipbreaker (CBMD)M
Product Number6754683
Product FamilyAPKT 10

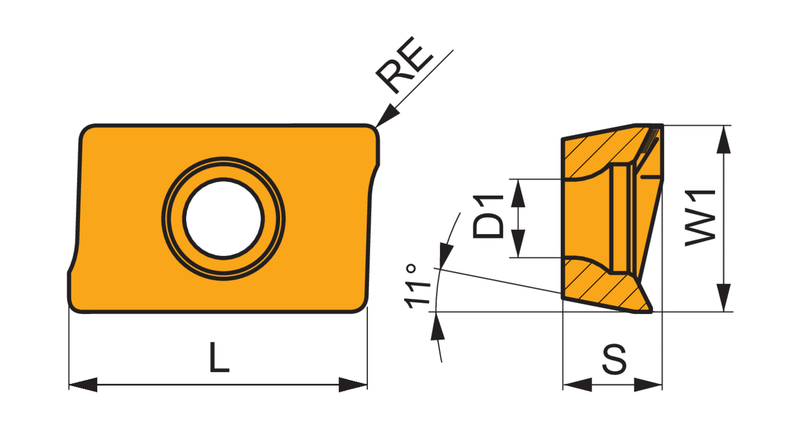

Insert Geometry
Insert DesignPACD
Insert Shape Code (SC)A - parallélogramme angle inclus de 85°
Insert Thickness — in (S)0.138"
Insert Thickness — mm (S)3.5 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number6754683
EAN3603602900494
File Type Download
APKT 1003PDER-M:M9340 — Line Drawing PDF Download
