RCMT 10T3MOE-UR:T9325
RCMT 10T3MOE-UR:T9325

RCMT 10T3MOE-UR:T9325

UGC DOR6754690
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.19 CAD - $12.19 CAD
$12.19 CAD
$12.19 CAD - $12.19 CAD
$12.19 CAD

Vendu en lots de : 10

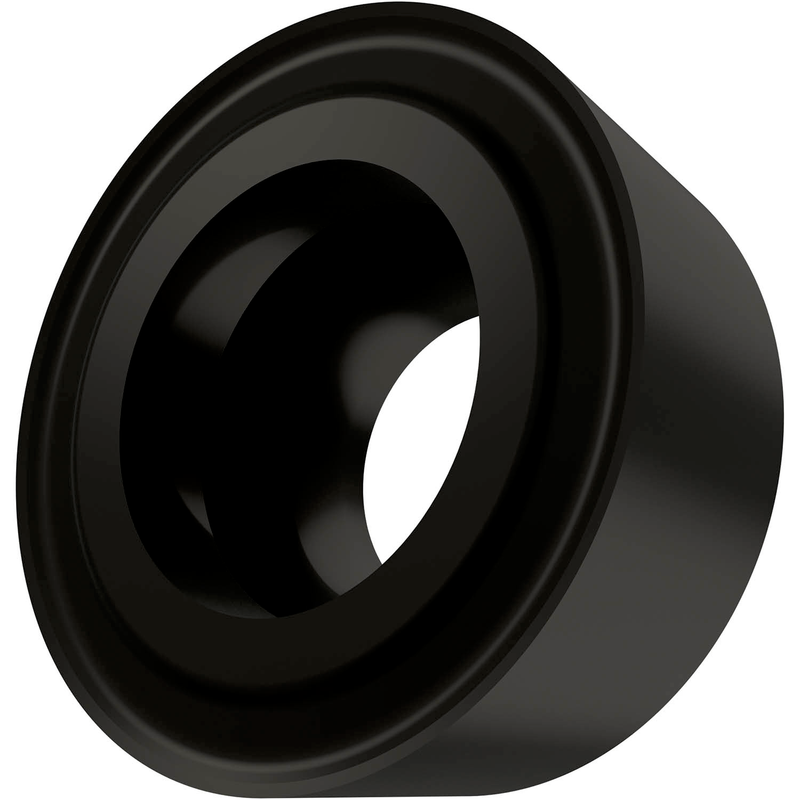

Plaquette de tournage positive simple face, ronde, avec dépouille de 7°, un diamètre de 10mm, 3,97mm d'épaisseur, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux UR avec arêtes de coupe arrondies, en nuance T9325, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage fin à lourd des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 10T3MOE-UR:T9325
GradeT9325
Chipbreaker (CBMD)VOUS
Product Number6754690
Product FamilyCRMT
Insert Geometry
Insert DesignRCMT
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6754690
EAN3603602900562
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
RCMT 10T3MOE-UR:T9325 — Line Drawing PDF Download
