RCMT 1204MOE-UR:T9325
RCMT 1204MOE-UR:T9325

RCMT 1204MOE-UR:T9325

UGC DOR6754691
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.36 CAD - $14.36 CAD
$14.36 CAD
$14.36 CAD - $14.36 CAD
$14.36 CAD

Vendu en lots de : 10

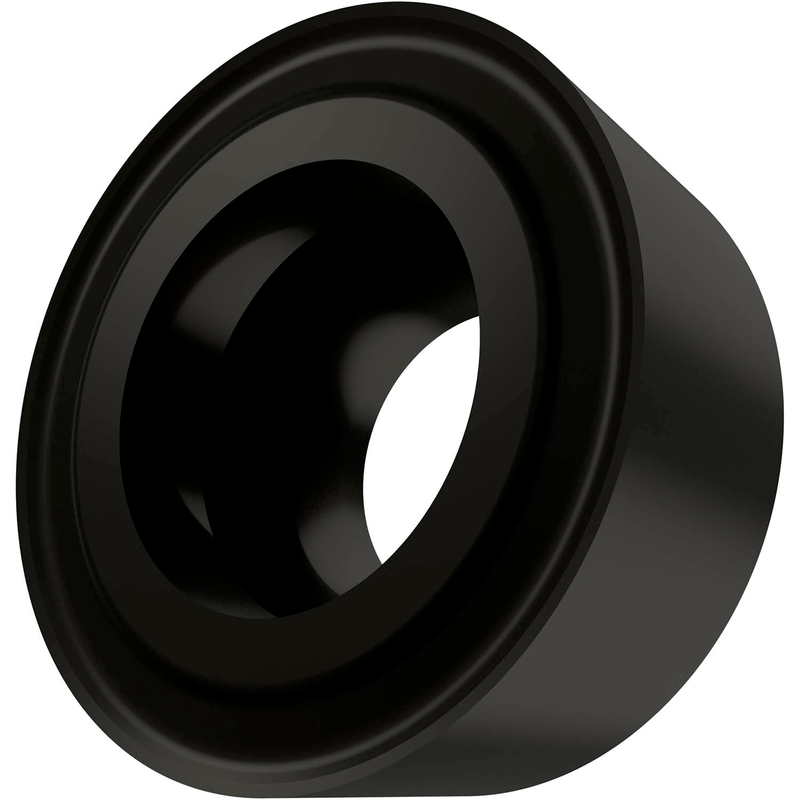

Plaquette de tournage positive simple face, ronde, dépouille de 7°, diamètre de 12mm, épaisseur de 4,76mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux UR avec arêtes de coupe arrondies, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P15-P35 et M10-M30, pour l'usinage fin à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 1204MOE-UR:T9325
GradeT9325
Chipbreaker (CBMD)VOUS
Product Number6754691
Product FamilyRCMT
Insert Geometry
Insert DesignMRCT
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Reference Numbers
EDP Number6754691
EAN3603602900579
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
RCMT 1204MOE-UR:T9325 — Line Drawing PDF Download
