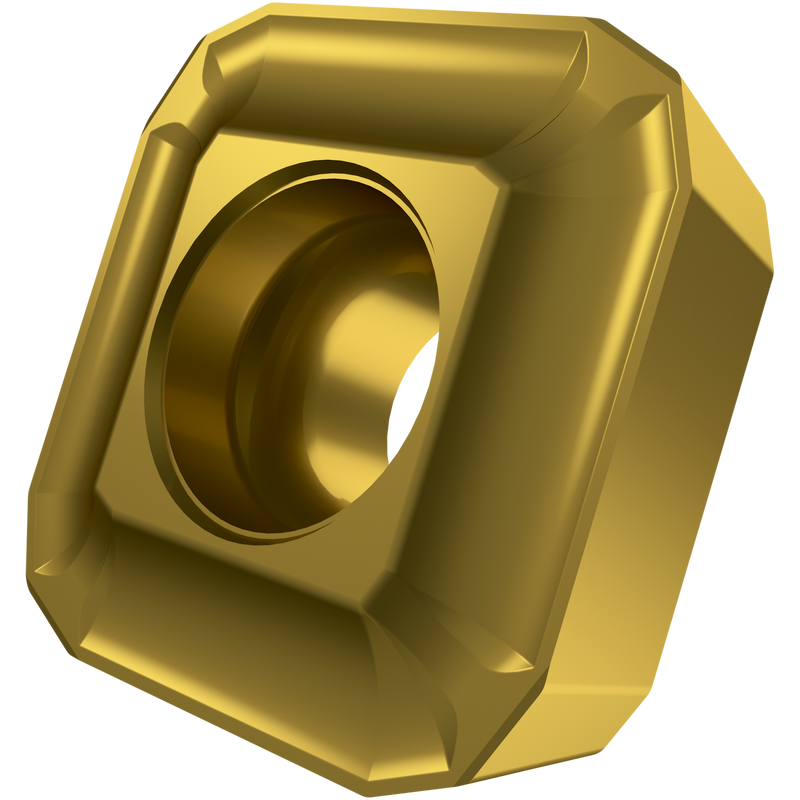

XPET 0502AP:D8345
XPET 0502AP:D8345

XPET 0502AP:D8345

UGC DOR6754693
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.36 CAD - $17.36 CAD
$17.36 CAD
$17.36 CAD - $17.36 CAD
$17.36 CAD

Vendu en lots de : 10

Plaquette de perçage pour l'alésage central des forets à plaquettes interchangeables PRAMET 80.D, pour une plage de diamètres de 15,00 à 17,00 mm, carbure WC-Co à grains fins revêtu PVD D8345 dans la gamme de nuances ISO P30-P50 pour l'usinage de l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XPET 0502AP:D8345
GradeD8345
Chipbreaker (CBMD)With chipbreaker -no designation
Product Number6754693
Product FamilyXPET
Insert Geometry
Insert DesignXPET
Insert Shape Code (SC)X - Special design
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.56 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Tool Information
Reference Numbers
EDP Number6754693
EAN3603602900593
Material Group Suitability
P — Steel and Cast Steel Primary use
K — Cast Iron Primary use
File Type Download

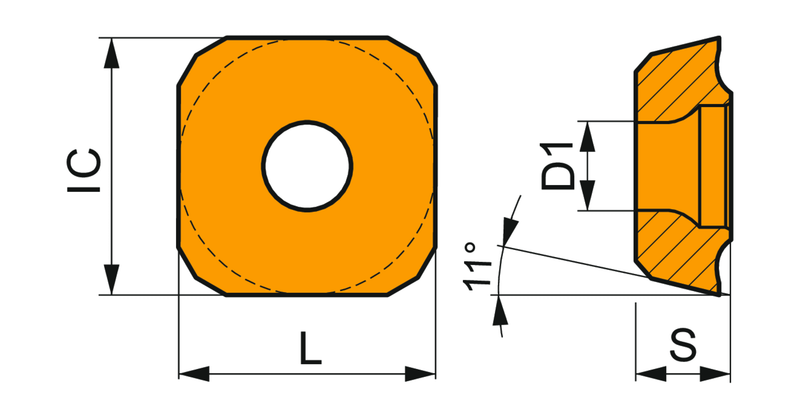

XPET 0502AP:D8345 — Line Drawing PDF Download
