LCMR 051604-F:T8330
LCMR 051604-F:T8330

LCMR 051604-F:T8330

UGC DOR6754719
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.80 CAD - $22.80 CAD
$22.80 CAD
$22.80 CAD - $22.80 CAD
$22.80 CAD

Vendu en lots de : 10

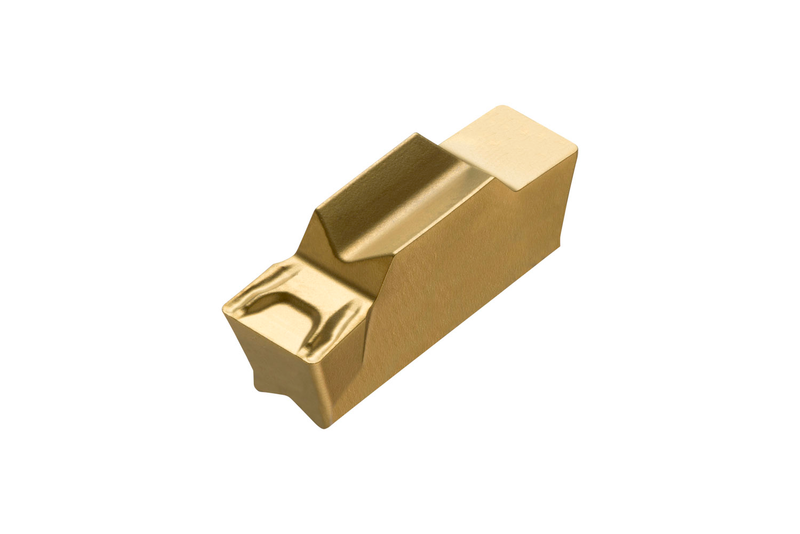

Plaquette de tronçonnage et rainurage simple face, longueur de 16,4 mm avec une largeur de coupe de 5 mm et des rayons de coin de 0,4 mm, une précision selon la classe de tolérance M et un brise-copeaux F, nuance T8330 WC-Co carbure à grain fin revêtu PVD, selon les plages de nuances ISO P25-P40 et M20-M35, pour l'usinage de l'acier et de l'acier inoxydable en combinaison avec les outils de tronçonnage et rainurage PRAMET GF..(RL) 05 et XLCCN 0516

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LCMR 051604-F:T8330
GradeT8330
Chipbreaker (CBMD)F
Product Number6754719
Product FamilyLCMR 16, LCMR 30 - F

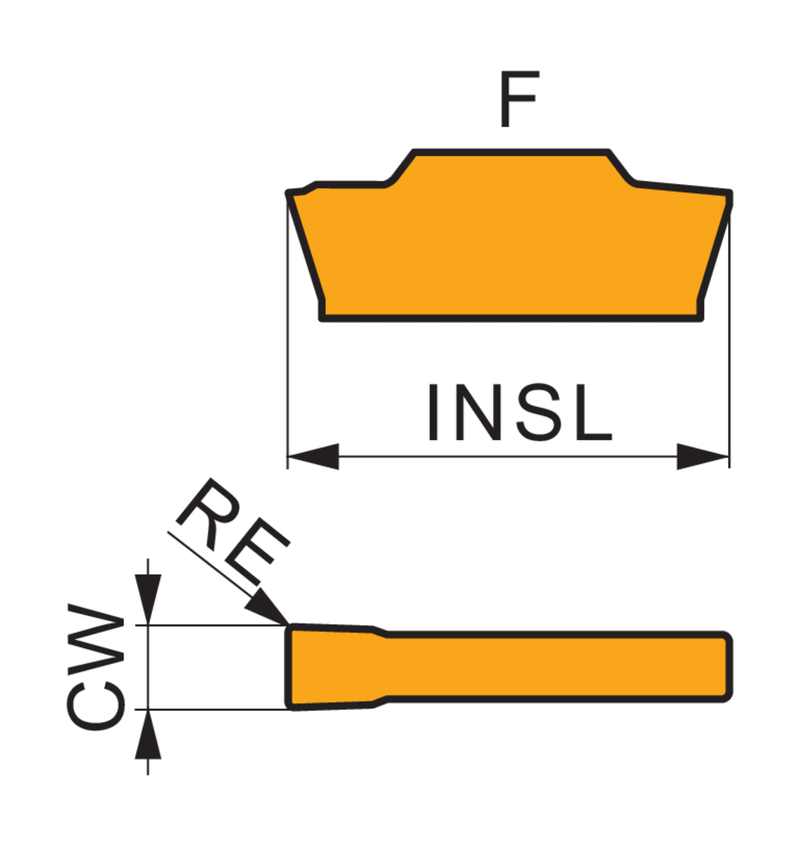

Insert Geometry
Insert DesignLCMR 16, LCMR 30
Insert Shape Code (SC)L - rectangulaire
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Tool Information
Reference Numbers
EDP Number6754719
EAN3603602900852
File Type Download
LCMR 051604-F:T8330 — Line Drawing PDF Download
