LCMR 061608-F:T8330
LCMR 061608-F:T8330

LCMR 061608-F:T8330

UGC DOR6754720
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.40 CAD - $25.40 CAD
$25.40 CAD
$25.40 CAD - $25.40 CAD
$25.40 CAD

Vendu en lots de : 10

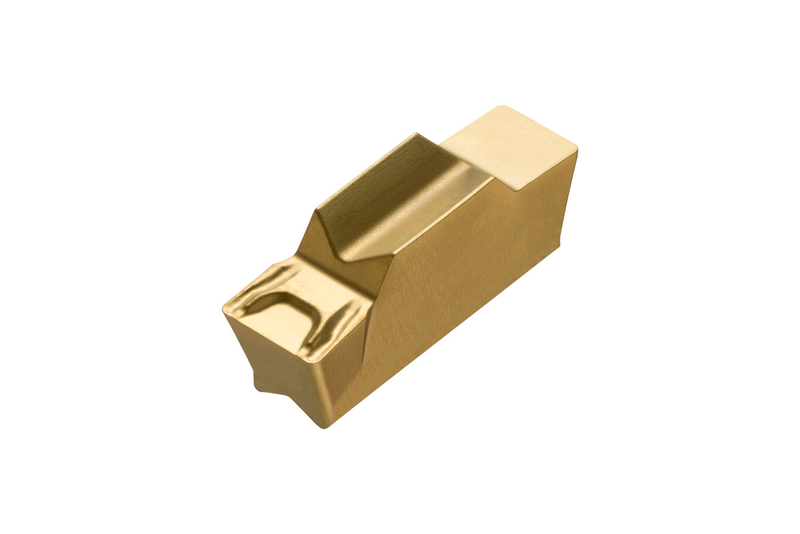

Plaquette de tronçonnage et rainurage simple face, longue de 16,4mm avec une largeur de coupe de 6mm et des rayons de coin de 0,8mm, une précision selon la classe de tolérance-M et un brise-copeaux F, nuance de carbure WC-Co à grains fins revêtu PVD T8330 dans les plages de nuances ISO P25-P40 et M20-M35 pour l'usinage de l'acier et de l'acier inoxydable en combinaison avec les outils de tronçonnage et de rainurage PRAMET GF..(RL) 06 et XLCCN 0616

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LCMR 061608-F:T8330
GradeT8330
Chipbreaker (CBMD)F
Product Number6754720
Product FamilyLCMR 16, LCMR 30 - F
Insert Geometry
Insert DesignLCMR 16, LCMR 30
Insert Shape Code (SC)L - rectangulaire
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Tool Information
Reference Numbers
EDP Number6754720
EAN3603602900869
File Type Download

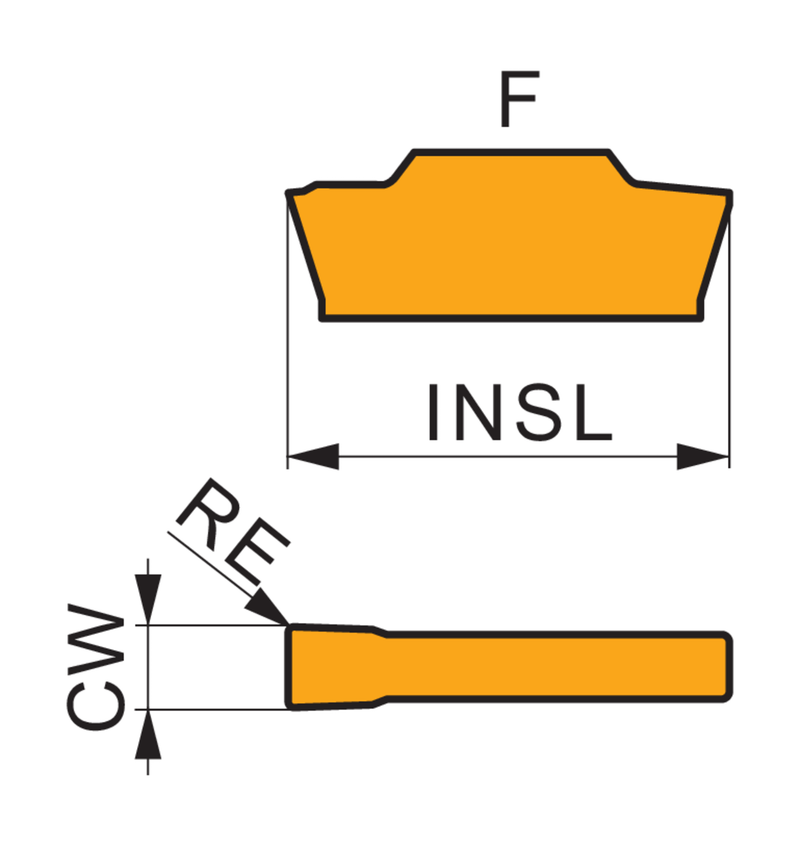

LCMR 061608-F:T8330 — Line Drawing PDF Download
