LCMR 041604-CM:T8330
LCMR 041604-CM:T8330

LCMR 041604-CM:T8330

UGC DOR6754726
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.94 CAD - $20.94 CAD
$20.94 CAD
$20.94 CAD - $20.94 CAD
$20.94 CAD

Vendu en lots de : 10

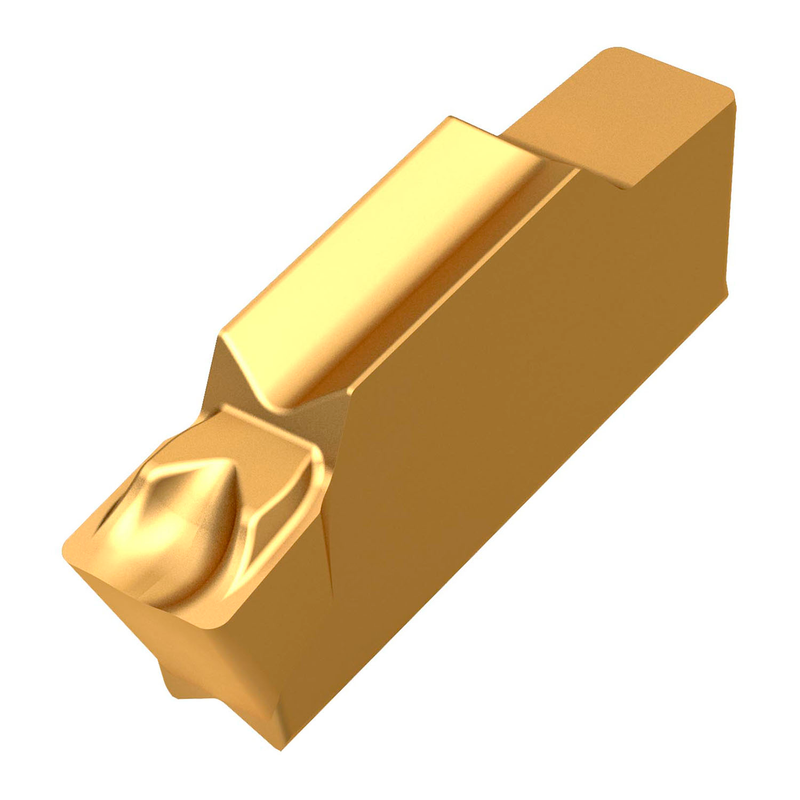

Plaquette de tronçonnage et gorgeage simple face, 16,4 mm de long avec une largeur de coupe de 4 mm et des rayons de coin de 0,4 mm, une précision selon la classe de tolérance-M et brise-copeaux CM, nuance T8330 WC-Co carbure à grain fin revêtu PVD dans les plages de nuances ISO P25-P40 et K20-K40 pour l'usinage de l'acier et de la fonte en combinaison avec les outils de tronçonnage et de gorgeage PRAMET GF..(RL) 04, GG..(RL) 04 et XLCCN 0416

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LCMR 041604-CM:T8330
GradeT8330
Chipbreaker (CBMD)CM
Product Number6754726
Product FamilyLCMR 16 - CM
Insert Geometry
Insert DesignLCMR 16, LCMR 30
Insert Shape Code (SC)L - rectangulaire
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number6754726
EAN3603602900920
File Type Download

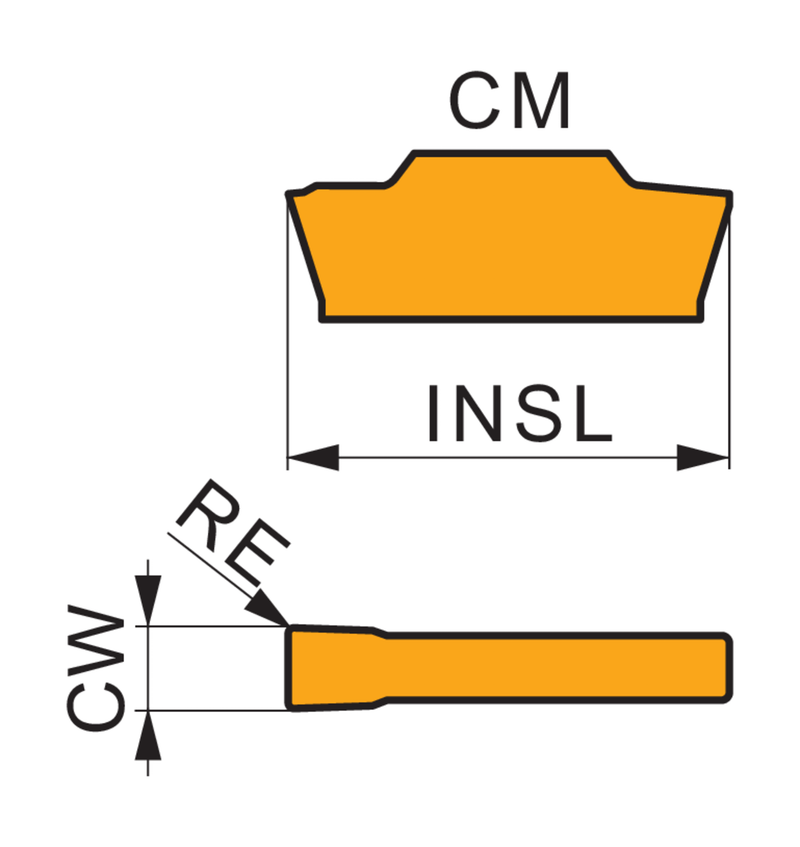

LCMR 041604-CM:T8330 — Line Drawing PDF Download
