CCMT 21.50.5-FM:T7335
CCMT 21.50.5-FM:T7335

CCMT 21.50.5-FM:T7335

UGC DOR6754732
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.97 CAD - $10.97 CAD
$10.97 CAD
$10.97 CAD - $10.97 CAD
$10.97 CAD

Vendu en lots de : 10

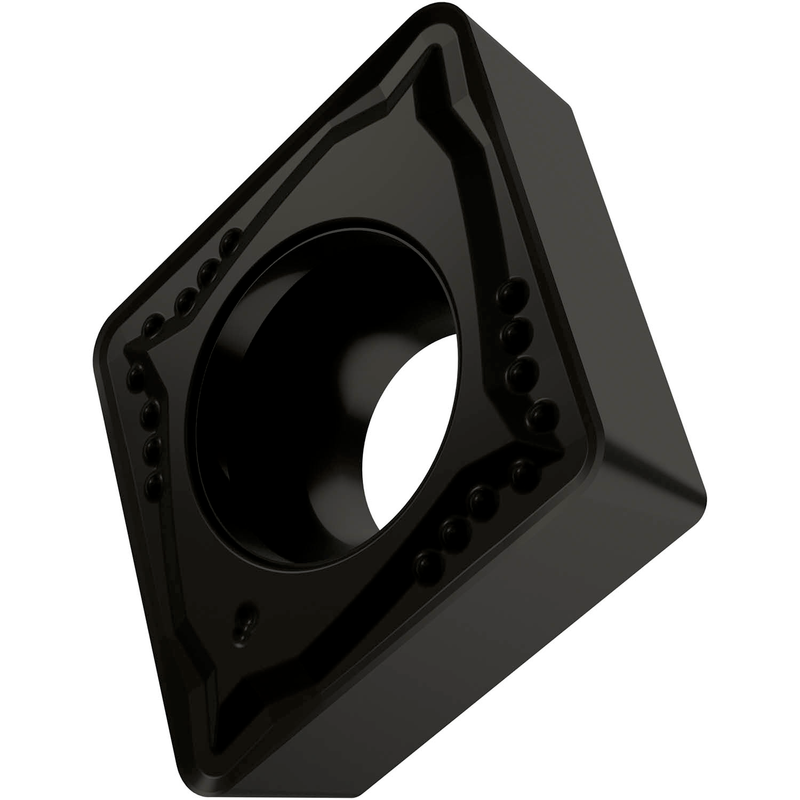

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur de 3/32", rayon de bec de 1/128" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M20-M40, pour l'usinage fin à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 21.50.5-FM:T7335
Product Name (ISO)CCMT 060202E-FM:T7335
GradeT7335
Chipbreaker (CBMD)FM
Product Number6754732
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number6754732
EAN3603602900982
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
File Type Download
CCMT 21.50.5-FM:T7335 — Line Drawing PDF Download
