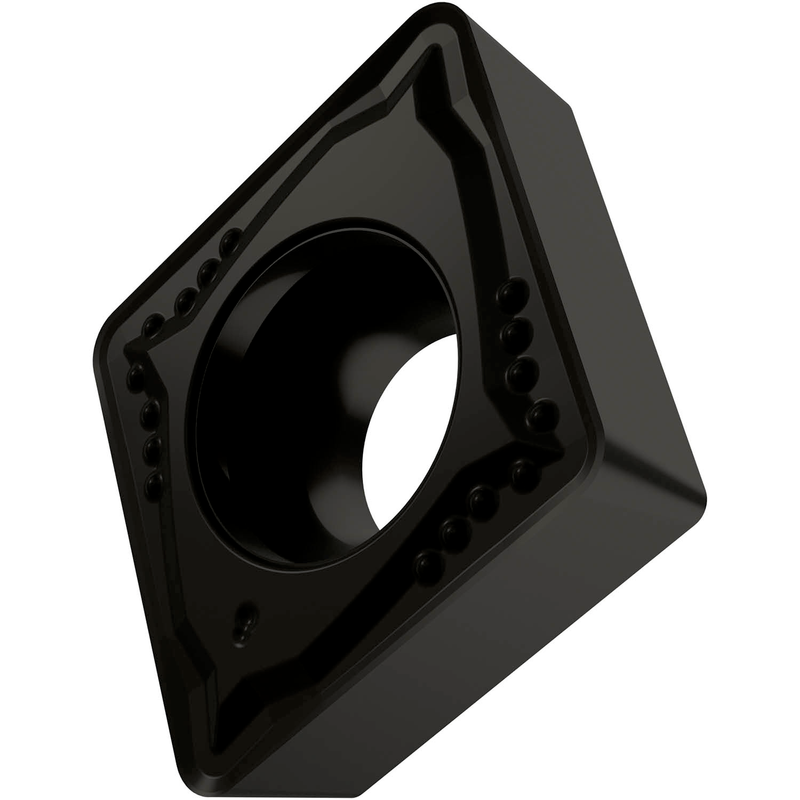

CCMT 32.50.5-FM:T7335
CCMT 32.50.5-FM:T7335

CCMT 32.50.5-FM:T7335

UGC DOR6754736
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.64 CAD - $12.64 CAD
$12.64 CAD
$12.64 CAD - $12.64 CAD
$12.64 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïdale 80° avec dépouille 7°, diamètre du cercle inscrit 3/8", épaisseur 5/32", rayon de bec 1/128" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO M20-M40, pour l'usinage fin à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 32.50.5-FM:T7335
Product Name (ISO)CCMT 09T302E-FM:T7335
GradeT7335
Chipbreaker (CBMD)FM
Product Number6754736
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle fermé 80° rhomboïde
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6754736
EAN3603602901026
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
File Type Download
CCMT 32.50.5-FM:T7335 — Line Drawing PDF Download
