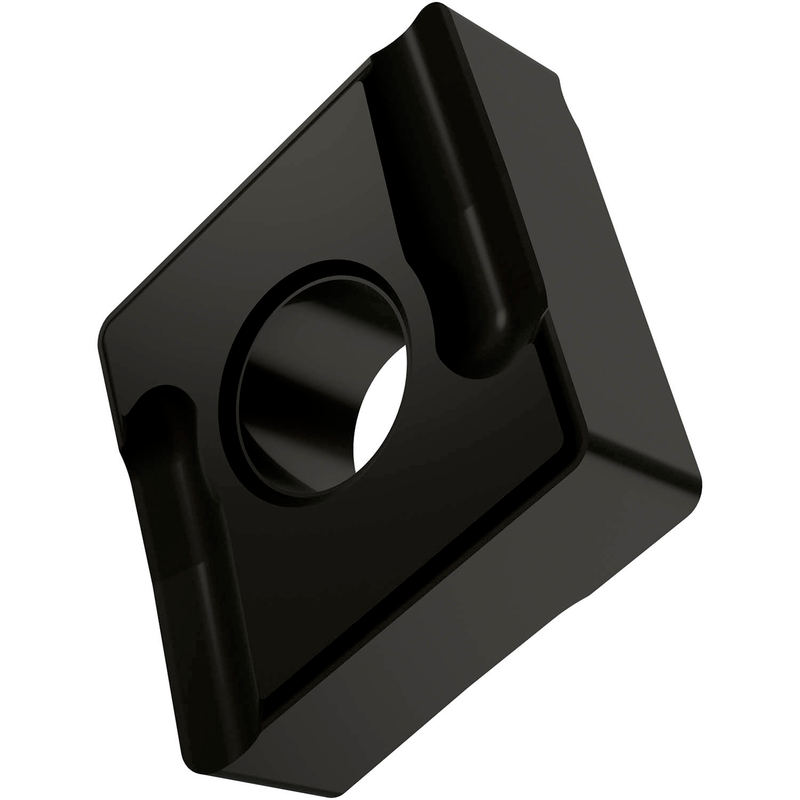

CNMG 432L-SI:T7335
CNMG 432L-SI:T7335

CNMG 432L-SI:T7335

UGC DOR6754752
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

Plaquette amovible négative double face, rhomboïdale 80° avec un diamètre de cercle inscrit de 1/2", une épaisseur de 3/16", un rayon de bec de 1/32" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux SI, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M20-M40, pour l'usinage moyen à lourd des aciers inoxydables avec un outil de tournage à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 432L-SI:T7335
Product Name (ISO)CNMG 120408EL-SI:T7335
GradeT7335
Chipbreaker (CBMD)Oui
Product Number6754752
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhomboïde 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6754752
EAN3603602901187
File Type Download
CNMG 432L-SI:T7335 — 3D Model STP Download
CNMG 432L-SI:T7335 — Line Drawing PDF Download
