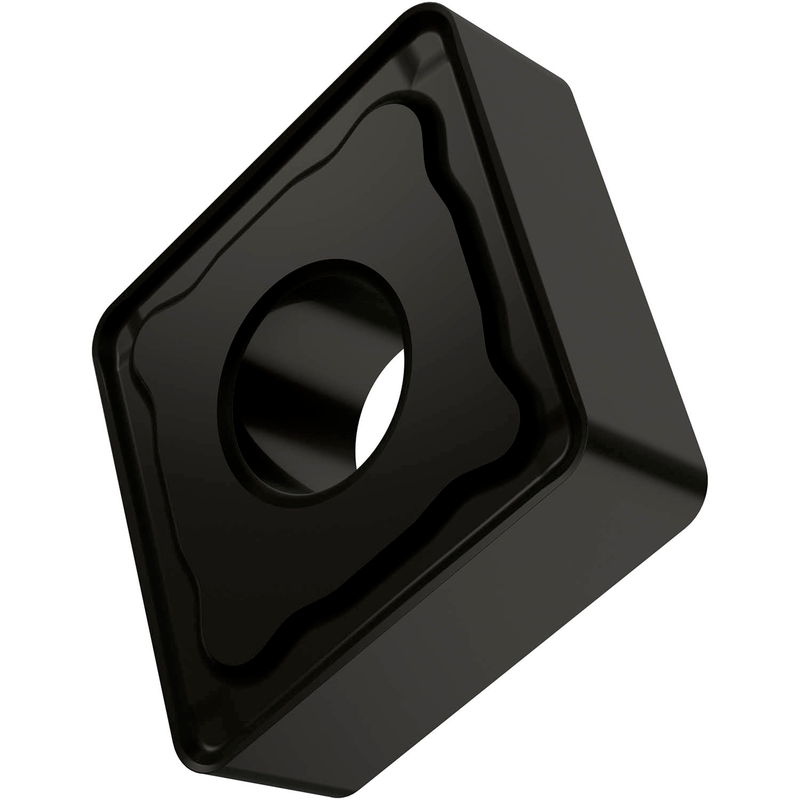

CNMG 433-NM:T7335
CNMG 433-NM:T7335

CNMG 433-NM:T7335

UGC DOR6754755
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde à 80° avec un diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO- M, brise-copeaux NM, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M20 - M40 et S15 - S25, pour l'usinage fin à lourd des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 433-NM:T7335
Product Name (ISO)CNMG 120412E-NM:T7335
GradeT7335
Chipbreaker (CBMD)NM
Product Number6754755
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number6754755
EAN3603602901217
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
CNMG 433-NM:T7335 — Line Drawing PDF Download
