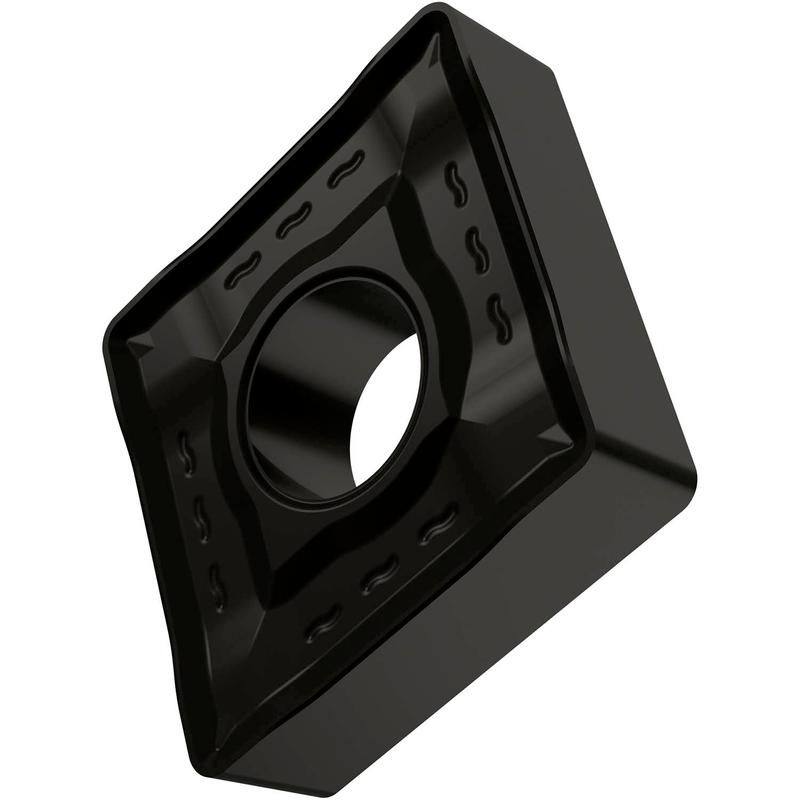

CNMM 646-NR2:T7335
CNMM 646-NR2:T7335

CNMM 646-NR2:T7335

UGC DOR6754768
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.26 CAD - $30.26 CAD
$30.26 CAD
$30.26 CAD - $30.26 CAD
$30.26 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde à 80° avec un diamètre de cercle inscrit de 3/4", 1/4" d'épaisseur, un rayon de bec de 3/32" et une précision d'indexage conforme à la classe de tolérance ISO M, brise-copeaux NR2, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M20 - M40, pour l'usinage moyen à très lourd des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 646-NR2:T7335
Product Name (ISO)CNMM 190624F-NR2:T7335
GradeT7335
Chipbreaker (CBMD)NR2
Product Number6754768
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number6754768
EAN3603602901347
File Type Download
CNMM 646-NR2:T7335 — Line Drawing PDF Download
