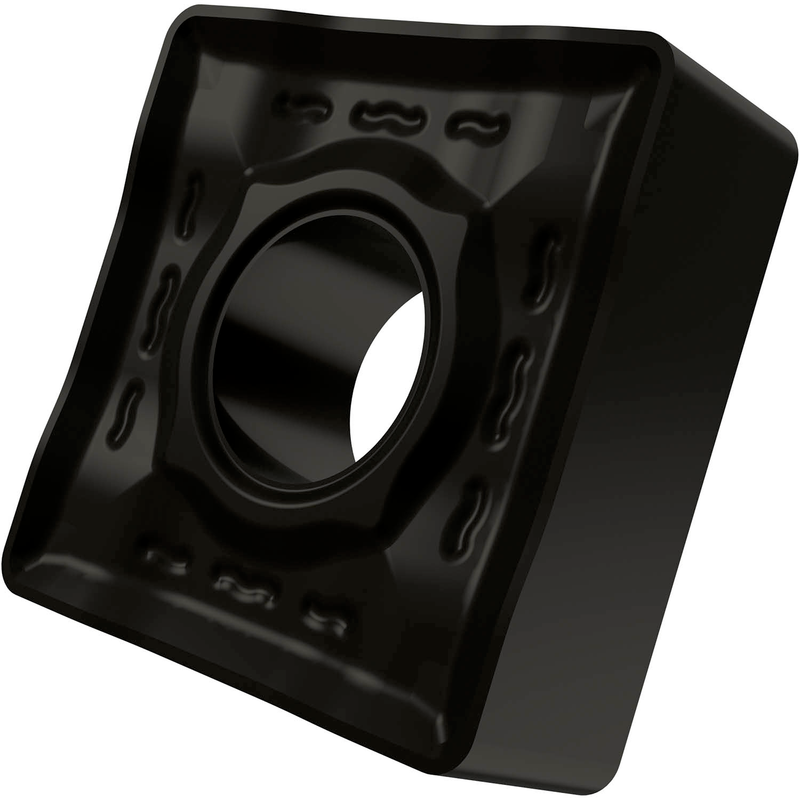

SNMM 543-NR2:T7335
SNMM 543-NR2:T7335

SNMM 543-NR2:T7335

UGC DOR6754808
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.61 CAD - $21.61 CAD
$21.61 CAD
$21.61 CAD - $21.61 CAD
$21.61 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée avec un diamètre de cercle inscrit de 5/8", 1/4" d'épaisseur, un rayon de bec de 3/64" et une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux NR2, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO M20 - M40, pour l'usinage moyen à très lourd des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 543-NR2:T7335
Product Name (ISO)SNMM 150612E-NR2:T7335
GradeT7335
Chipbreaker (CBMD)NR2
Product Number6754808
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number6754808
EAN3603602901743
File Type Download
SNMM 543-NR2:T7335 — Line Drawing PDF Download
