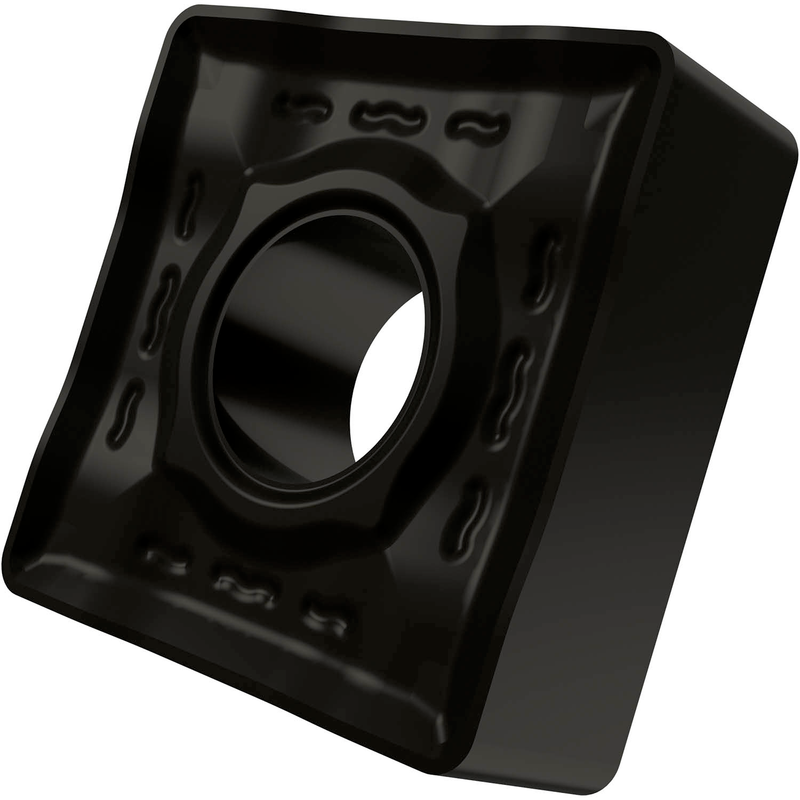

SNMM 866-NR2:T7335
SNMM 866-NR2:T7335

SNMM 866-NR2:T7335

UGC DOR6754814
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.00 CAD - $60.00 CAD
$60.00 CAD
$60.00 CAD - $60.00 CAD
$60.00 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, carrée avec diamètre du cercle inscrit de 1", épaisseur 3/8", rayon de bec 3/32" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux NR2, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M20 - M40, pour l'usinage moyen à très lourd des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 866-NR2:T7335
Product Name (ISO)SNMM 250924E-NR2:T7335
GradeT7335
Chipbreaker (CBMD)NR2
Product Number6754814
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.63"
Depth of Cut Max — mm (APMX)16.0 mm
Tool Information
Reference Numbers
EDP Number6754814
EAN3603602901804
File Type Download
SNMM 866-NR2:T7335 — Line Drawing PDF Download
