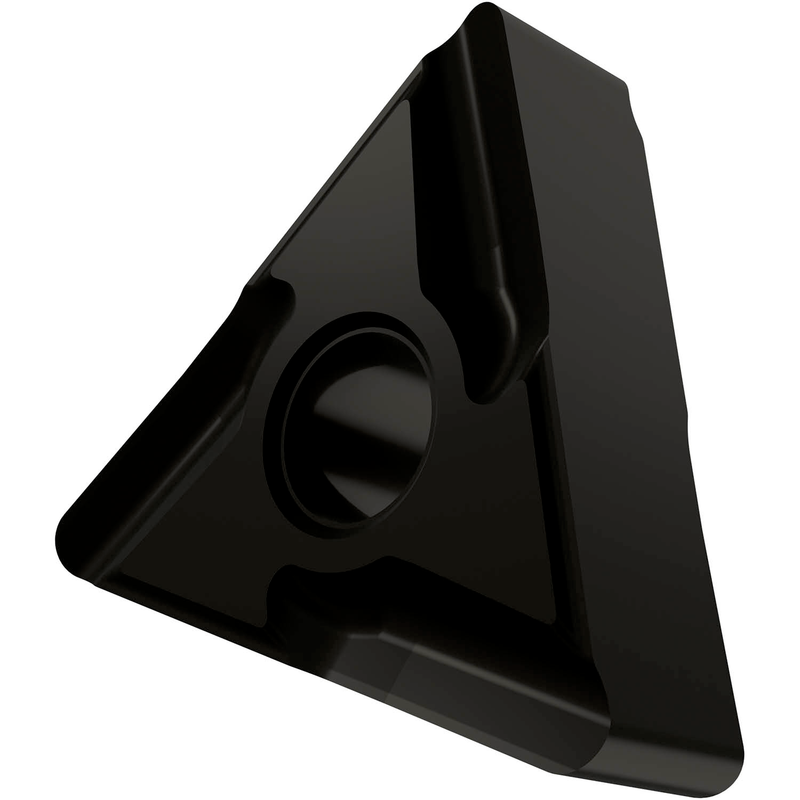

TNMG 331R-SI:T7335
TNMG 331R-SI:T7335

TNMG 331R-SI:T7335

UGC DOR6754823
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.64 CAD - $11.64 CAD
$11.64 CAD
$11.64 CAD - $11.64 CAD
$11.64 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, triangulaire avec un diamètre de cercle inscrit de 3/8", une épaisseur de 3/16", un rayon de bec de 1/64" et une précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux SI, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M20-M40, pour l'usinage moyen à lourd des aciers inoxydables avec un outil de tournage à droite

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 331R-SI:T7335
Product Name (ISO)TNMG 160404ER-SI:T7335
GradeT7335
Chipbreaker (CBMD)Oui
Product Number6754823
Product FamilyCNGT
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6754823
EAN3603602901897
File Type Download
TNMG 331R-SI:T7335 — Line Drawing PDF Download
