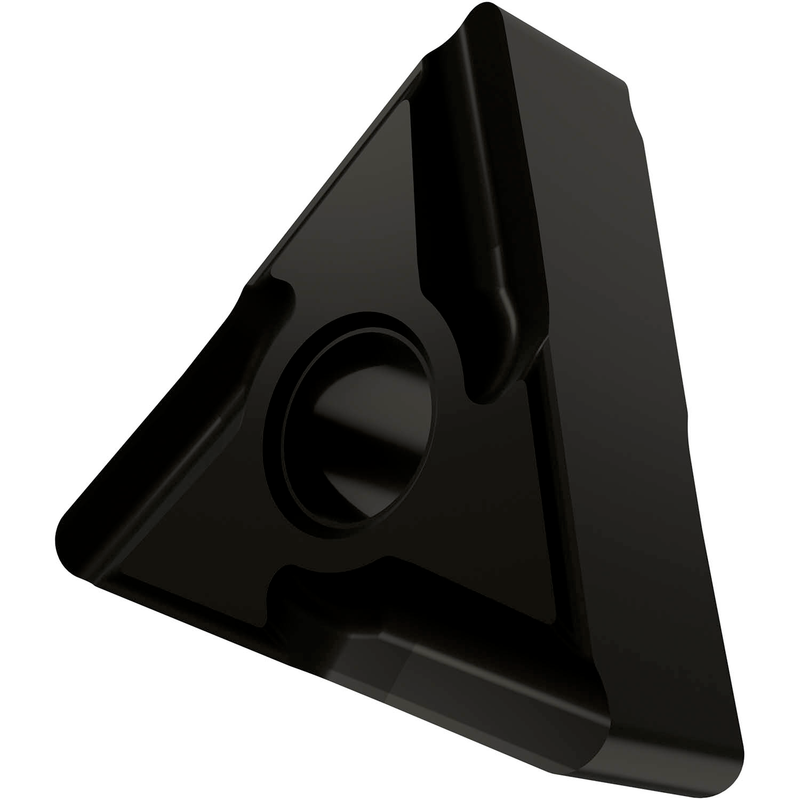

TNMG 332L-SI:T7335
TNMG 332L-SI:T7335

TNMG 332L-SI:T7335

UGC DOR6754825
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.64 CAD - $11.64 CAD
$11.64 CAD
$11.64 CAD - $11.64 CAD
$11.64 CAD

Vendu en lots de : 10

Plaquette négative double face, triangulaire avec un diamètre de cercle inscrit de 3/8", 3/16" d'épaisseur, rayon de pointe de 1/32" et une précision d'indexation selon la classe de tolérance ISO-M, brise-copeaux SI, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M20-M40, pour l'usinage moyen à lourd des aciers inoxydables avec un outil de tournage à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 332L-SI:T7335
Product Name (ISO)TNMG 160408EL-SI:T7335
GradeT7335
Chipbreaker (CBMD)Oui
Product Number6754825
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - angulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6754825
EAN3603602901910
File Type Download
TNMG 332L-SI:T7335 — Line Drawing PDF Download
