VBMT 221-FM:T7335
VBMT 221-FM:T7335

VBMT 221-FM:T7335

UGC DOR6754830
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.97 CAD - $20.97 CAD
$20.97 CAD
$20.97 CAD - $20.97 CAD
$20.97 CAD

Vendu en lots de : 10

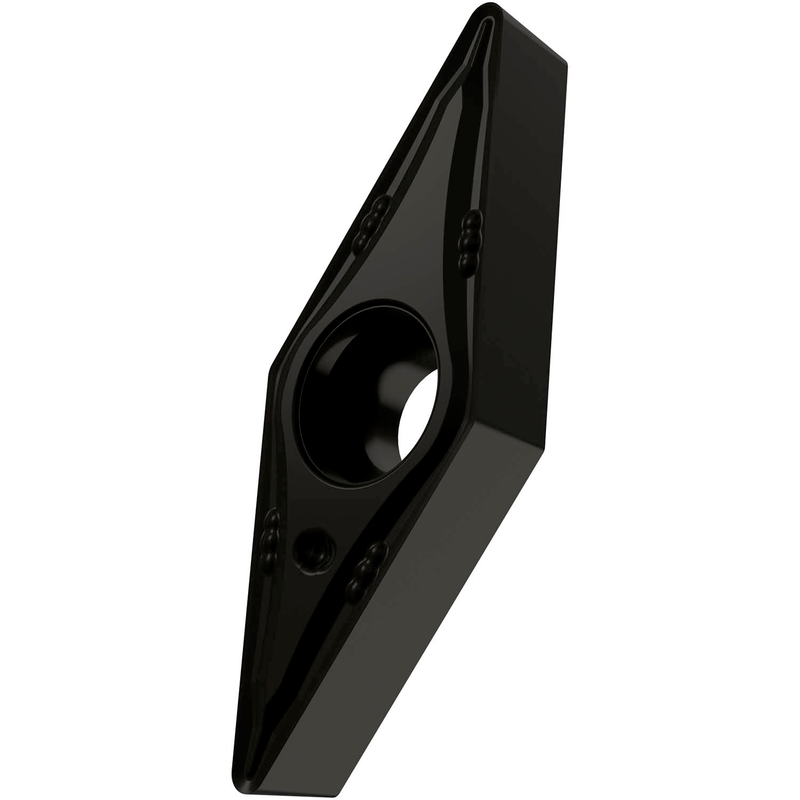

Plaquette positive simple face, rhomboïde 35° avec dépouille 5°, diamètre du cercle inscrit de 1/4", épaisseur 1/8", rayon de bec 1/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M20-M40, pour l'usinage fin à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)VBMT 221-FM:T7335
Product Name (ISO)VBMT 110304E-FM:T7335
GradeT7335
Chipbreaker (CBMD)FM
Product Number6754830
Product FamilyVBMT
Insert Geometry
Insert DesignVBMT
Insert Shape Code (SC)V - à angle inclus de 35° rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6754830
EAN3603602901965
Material Group Suitability
P — Steel and Cast Steel Usage possible
M — Stainless Steel Usage principal
File Type Download

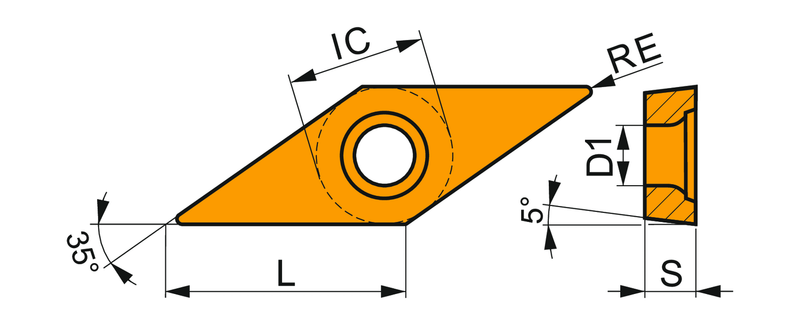

VBMT 221-FM:T7335 — Line Drawing PDF Download
