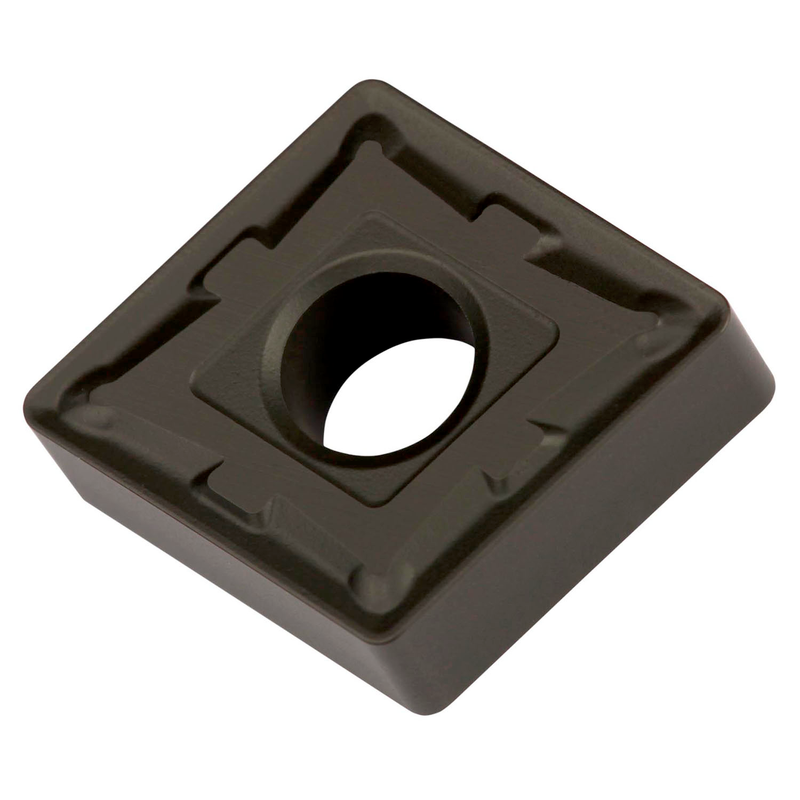

CNMG 543-M:T9335
CNMG 543-M:T9335

CNMG 543-M:T9335

UGC DOR6754866
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.29 CAD - $22.29 CAD
$22.29 CAD
$22.29 CAD - $22.29 CAD
$22.29 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 5/8", épaisseur de 1/4", rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux M, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P20-P45, pour l'usinage léger à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 543-M:T9335
Product Name (ISO)CNMG 160612E-M:T9335
GradeT9335
Chipbreaker (CBMD)M
Product Number6754866
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.276"
Depth of Cut Max — mm (APMX)7.0 mm
Tool Information
Reference Numbers
EDP Number6754866
EAN3603602902320
Material Group Suitability
P — Steel and Cast Steel Usage principal
File Type Download
CNMG 543-M:T9335 — Line Drawing PDF Download
