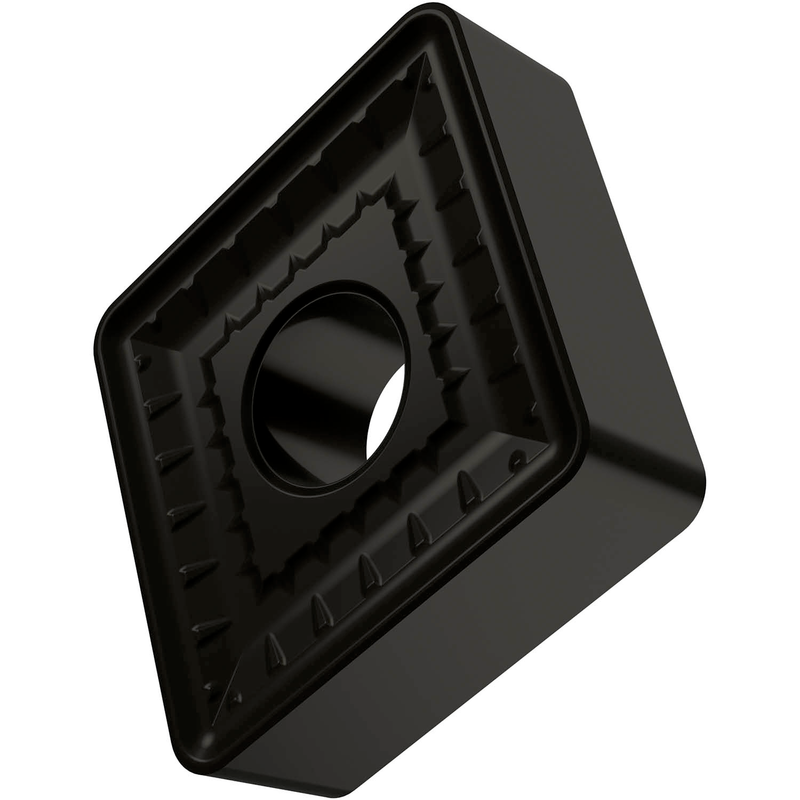

CNMM 866-923:T9335
CNMM 866-923:T9335

CNMM 866-923:T9335

UGC DOR6754894
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.93 CAD - $61.93 CAD
$61.93 CAD
$61.93 CAD - $61.93 CAD
$61.93 CAD

Vendu en lots de : 5

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 1", épaisseur 3/8", rayon de bec 3/32" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux 923, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO P20 - P45 et M15 - M40, pour l'usinage lourd à très lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 866-923:T9335
Product Name (ISO)CNMM 250924S-923:T9335
GradeT9335
Chipbreaker (CBMD)923
Product Number6754894
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle de 80° inclus, rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.63"
Depth of Cut Max — mm (APMX)16.0 mm
Tool Information
Reference Numbers
EDP Number6754894
EAN3603602902603
File Type Download
CNMM 866-923:T9335 — Line Drawing PDF Download
