RCMX 2507MO-RM1:T9335
RCMX 2507MO-RM1:T9335

RCMX 2507MO-RM1:T9335

UGC DOR6754924
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$50.00 CAD - $50.00 CAD
$50.00 CAD
$50.00 CAD - $50.00 CAD
$50.00 CAD

Vendu en lots de : 10

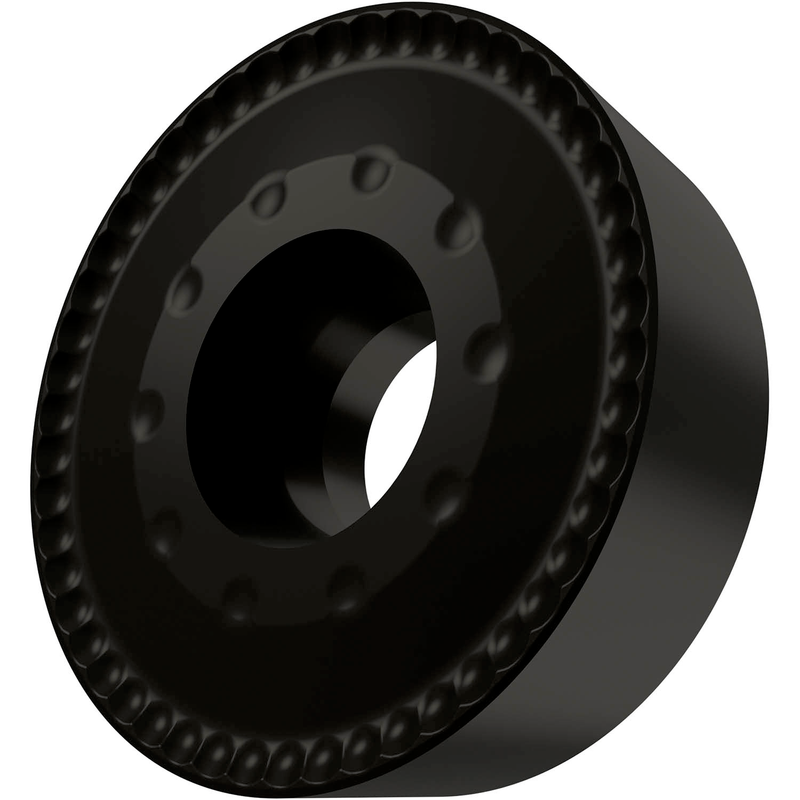

Plaquette ronde positive de conception spéciale avec un angle de dépouille de 7°, un diamètre de 25 mm, une épaisseur de 7,94 mm, une précision de positionnement conforme à la classe de tolérance ISO-M, un brise-copeaux RM1, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P20-P45, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMX 2507MO-RM1:T9335
GradeT9335
Chipbreaker (CBMD)RM1
Product Number6754924
Product FamilyRCMX
Insert Geometry
Insert DesignRCMX
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Depth of Cut Max — in (APMX)0.276"
Depth of Cut Max — mm (APMX)7.0 mm
Tool Information
Reference Numbers
EDP Number6754924
EAN3603602902900
File Type Download
RCMX 2507MO-RM1:T9335 — Line Drawing PDF Download
