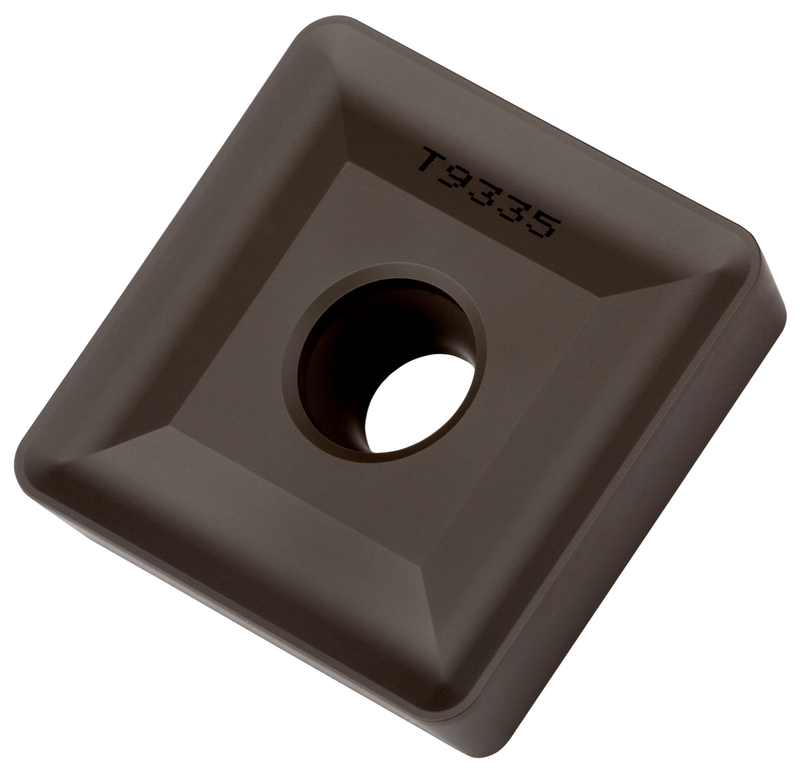

SCMT 1268-DR4:T9335
SCMT 1268-DR4:T9335

SCMT 1268-DR4:T9335

UGC DOR6754928
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$121.43 CAD - $121.43 CAD
$121.43 CAD
$121.43 CAD - $121.43 CAD
$121.43 CAD

Vendu en lots de : 2

Plaquette de tournage positive simple face, carrée avec dépouille de 7°, diamètre du cercle inscrit de 1-1/2", épaisseur de 3/8", rayon de bec de 1/8" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux DR4, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P20-P45, pour l'usinage lourd à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SCMT 1268-DR4:T9335
Product Name (ISO)SCMT 380932E-DR4:T9335
GradeT9335
Chipbreaker (CBMD)R4D
Product Number6754928
Product FamilySCMT
Insert Geometry
Insert DesignSCMT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.5"
Inscribed Circle Dia. — mm (IC)38.1 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.126"
Corner Radius — mm (RE)3.2 mm
Depth of Cut Max — in (APMX)0.709"
Depth of Cut Max — mm (APMX)18.0 mm
Tool Information
Reference Numbers
EDP Number6754928
EAN3603602902948
File Type Download
SCMT 1268-DR4:T9335 — Line Drawing PDF Download
